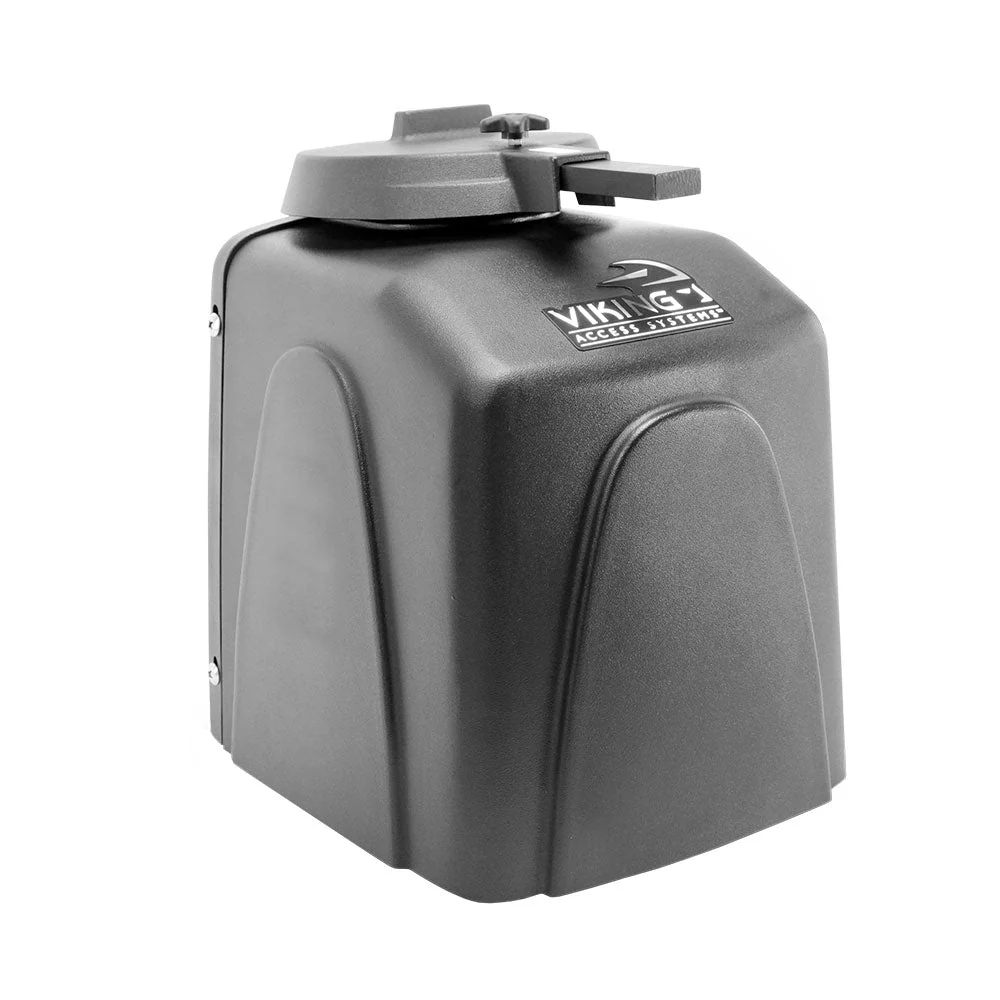

Viking R6 Residential Swing Gate Operator Only | VIK-VA-R6NX

Viking R6 Residential Swing Gate Operator Only | VIK-VA-R6NX

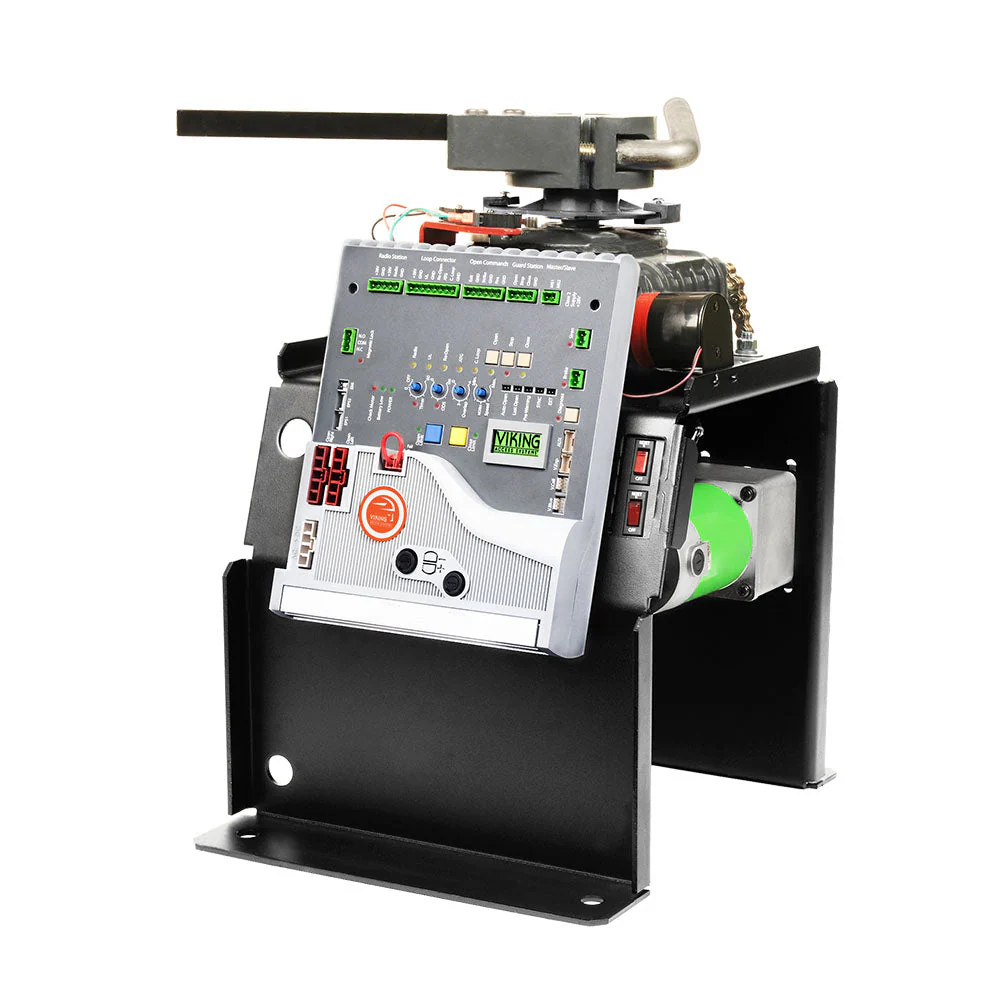

The R-6 Residential Swing Gate Operator features the V-Flex control board with on-board diagnostics LCD display and new chassis design providing easy viewing of the controls. The R6 is also equipped with a built-in heater; an onboard temperature management system and allows for an increased gate capacity of up to 700 lbs. making it a great option for heavy ornamental gates. Viking's integrated true battery backup system, convenient fuse access, and LED status indicators for incoming high voltage make this the operator of choice for a homeowner swing gate application. The R6 Swing Gate Operator has a 5-year residential warranty.

Features

• Adaptive motor control
• Built-in thermostat-controlled heater
• Built-in voltmeter
• Lightning strike protection
• Multiple power options
• On-board display
• True battery back-up
• UL325 compliant
• Two monitoring inputs w/ up to 4 devices per input
• 120 V outlet provided
• Adjustable speed control
• Anti-tailgating feature
• Fail secure mode
• Fail-safe mode
• Manual release - mechanical
• Multiple power outage options
• Two 4A batteries included

Technical Specifications

• Maximum Gate Capacity: 14 ft at 700 lb
• UL 325 Classification: Class I
• Duty Cycle: 100%
• Operating Voltage: 24VDC
• Voltage Current Specs: 120VAC - 2.5A or 240VAC - 1.5A
• Main Power Frequency: 50Hz / 60Hz
• Main Power Fuse: 4A Timed
• Alternative Power Source: 24VAC / VDC (60VA) or Solar
• Accessory Power: 24VDC - 750mA
• Power Consumption - Idle: 70mA
• Motor Current (Typical): 4.0A
• Operating Temperature: -20°F (-28°C) to 160°F (71°C)
• Opening Angle: 120°
• Gate Speed: 13-16 sec./90°
• Battery Backup: 400 Continuous Cycles
