The I-770 Underground Swing Gate Operator offers the solution to home and property owners who want to center all their attention on their gate. Nearly invisible, the I-770 is ETL Listed, as UL325, and UL991 compliant. The direct-drive DC gearhead unit is IP67 water-resistant and has a convenient manual release mechanism. This I-770 comes with a stainless steel chassis and a battery backup capable of 250 continuous cycles. The I-770 is powered by the V-Flex control board, including speed control and diagnostic LCD display. This intuitive operator is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations.

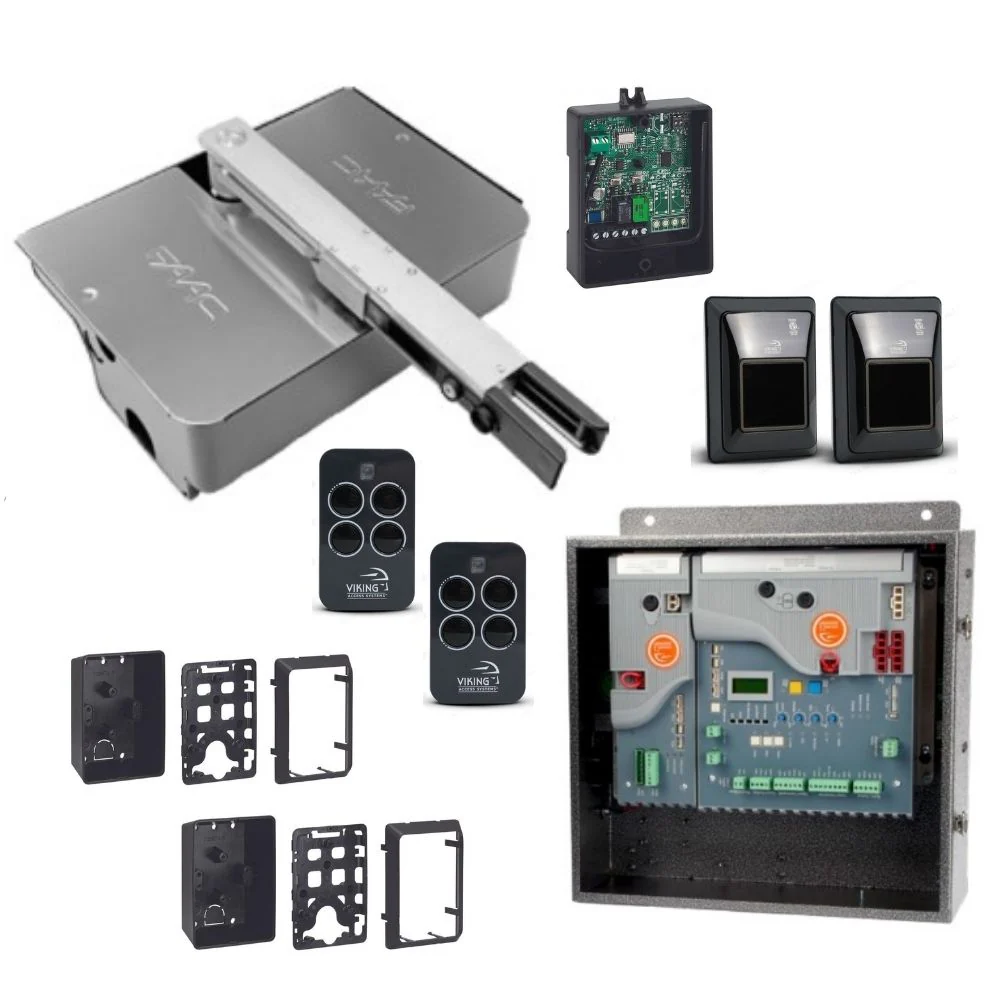

Includes

• 1 VA-I770 Inground Swing Gate Operator
• 1 VA-ECUS2 ECU Single

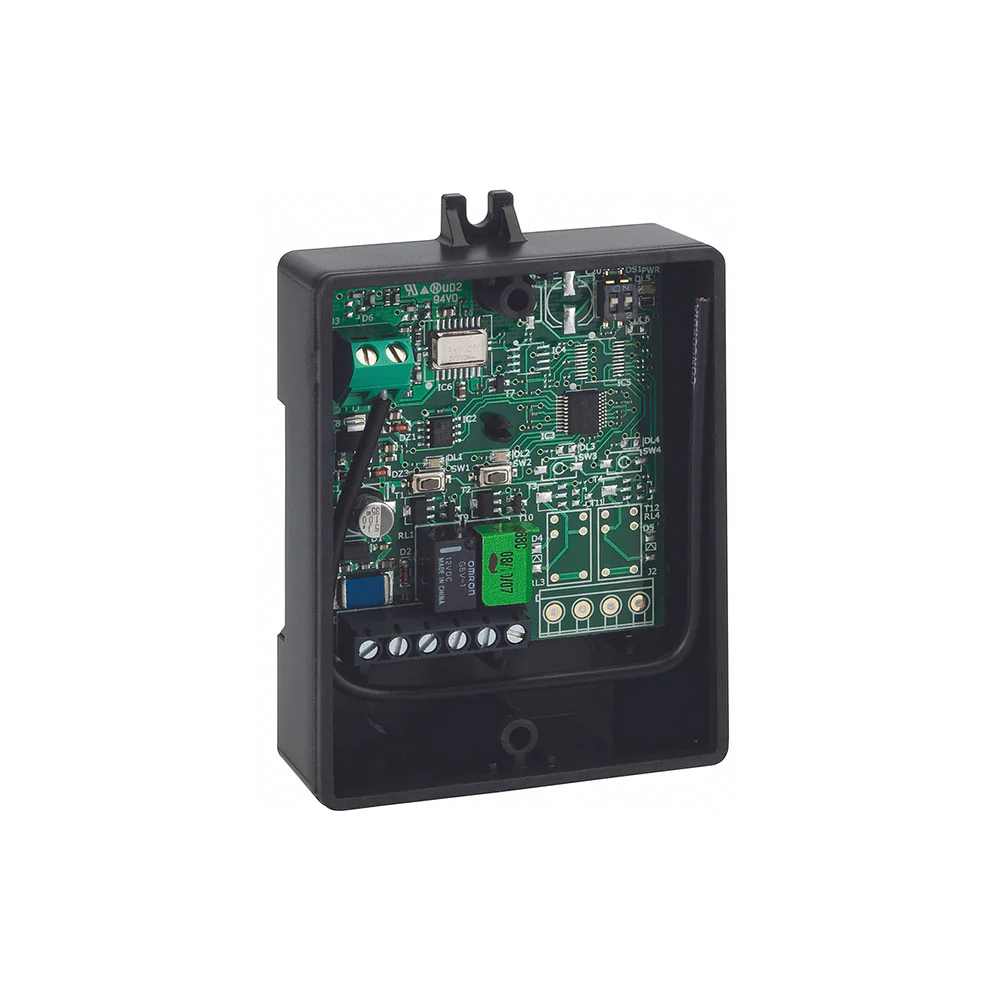

• 1 FA-XR2C 433 Mhz Receiver
• 2 FA-XT4RC 433 Mhz RC Transmitter
• 1 FA-XP30-10K Photocell 10K Resistor
• 2 FA-XP30AC Photocell adapter

Features

• Adaptive motor control
• Built-in thermostat-controlled heater
• Built-in voltmeter
• Lightning strike protection
• Multiple power options
• On-board display
• True battery back-up
• UL325 compliant
• Two monitoring inputs with up to 4 devices per input
• Adjustable speed control
• Anti-tailgating feature
• Fail secure mode
• Large box option
• Manual release - mechanical
• Multiple power outage options
• Positive stop limits

Manufacturer's Warranty Period

• 3 Years

Technical Specifications

• Maximum Gate Capacity: 12 ft at 650 lb
• UL 325 Classification: Class I, II, III, IV
• Duty Cycle: 100%
• Operating Voltage: 24VDC
• Voltage Current Specs: 120VAC - 1.5A or 240VAC - 1.0A (each motor)
• Main Power Frequency: 50Hz / 60Hz
• Main Power Fuse: 4A Timed
• Alternative Power Source: 24VAC / VDC (60VA) or Solar
• Accessory Power: 24VDC - 750mA
• Power Consumption - Sleep: 28mA
• Motor Current (Typical): 3.0A
• Operating Temperature: -20°F (-28°C) to 131°F (55°C)
• Opening Angle: 110°
• Gate Speed: 13-15 sec./90°
• Battery Backup: 400 Continuous Cycles

Product Literature

• I-770 Single Kit - Stainless Steel User Manual
• I-770 Single Kit - Stainless Steel Specifications Sheet
• Viking Limited Warranty Policy
