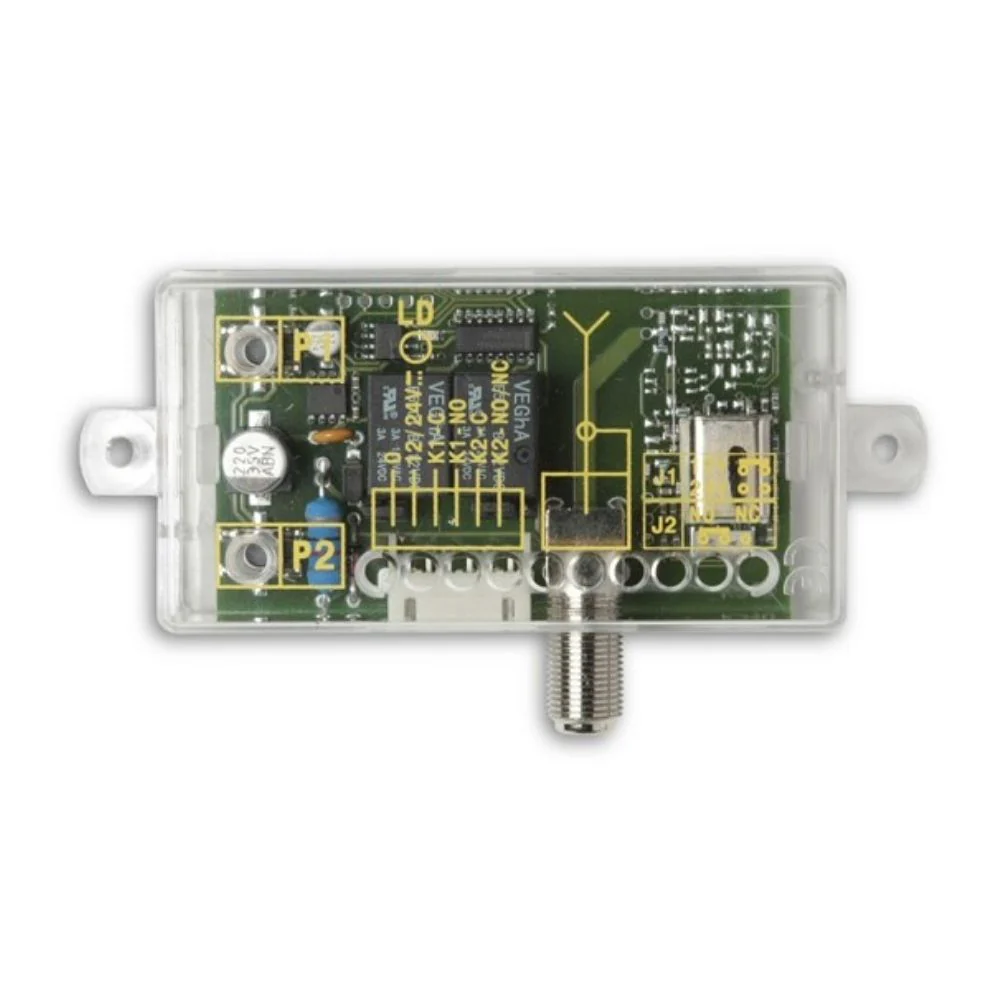

USAutomatic 12/24 VDC Universal Dual Channel Receiver | USA-030207
The 12/24V basic receiver is a 2 relay output receiver, operating at 433,92
MHz in AM/ASK modulation. It is designed for automatic closing systems and anti-burglar systems. The operating frequency is among the European harmonized frequencies. The antenna is connected with an F-type connector.
The relay outputs are 2: P1 and P2. P1 with relay contacts C and N/O
P2 with relay contacts C and N/C or N/O according to the selection of J2 ( see par. 1H).
The operating mode of P1 is Pulse, and that of P2 can be Pulse or Latch. The power supply is 12 or 24 Vdc or Vac ( see par. 1F). The IP grade of 2X allows only indoor installations. The product fully complies with the EMC European Regulations (CE) and the FCC Part 15 Regulations.
Description
USAutomatic 12/24 VDC Universal Dual Channel Receiver | USA-030207
The 12/24V basic receiver is a 2 relay output receiver, operating at 433,92
MHz in AM/ASK modulation. It is designed for automatic closing systems and anti-burglar systems. The operating frequency is among the European harmonized frequencies. The antenna is connected with an F-type connector.
The relay outputs are 2: P1 and P2. P1 with relay contacts C and N/O
P2 with relay contacts C and N/C or N/O according to the selection of J2 ( see par. 1H).
The operating mode of P1 is Pulse, and that of P2 can be Pulse or Latch. The power supply is 12 or 24 Vdc or Vac ( see par. 1F). The IP grade of 2X allows only indoor installations. The product fully complies with the EMC European Regulations (CE) and the FCC Part 15 Regulations.
