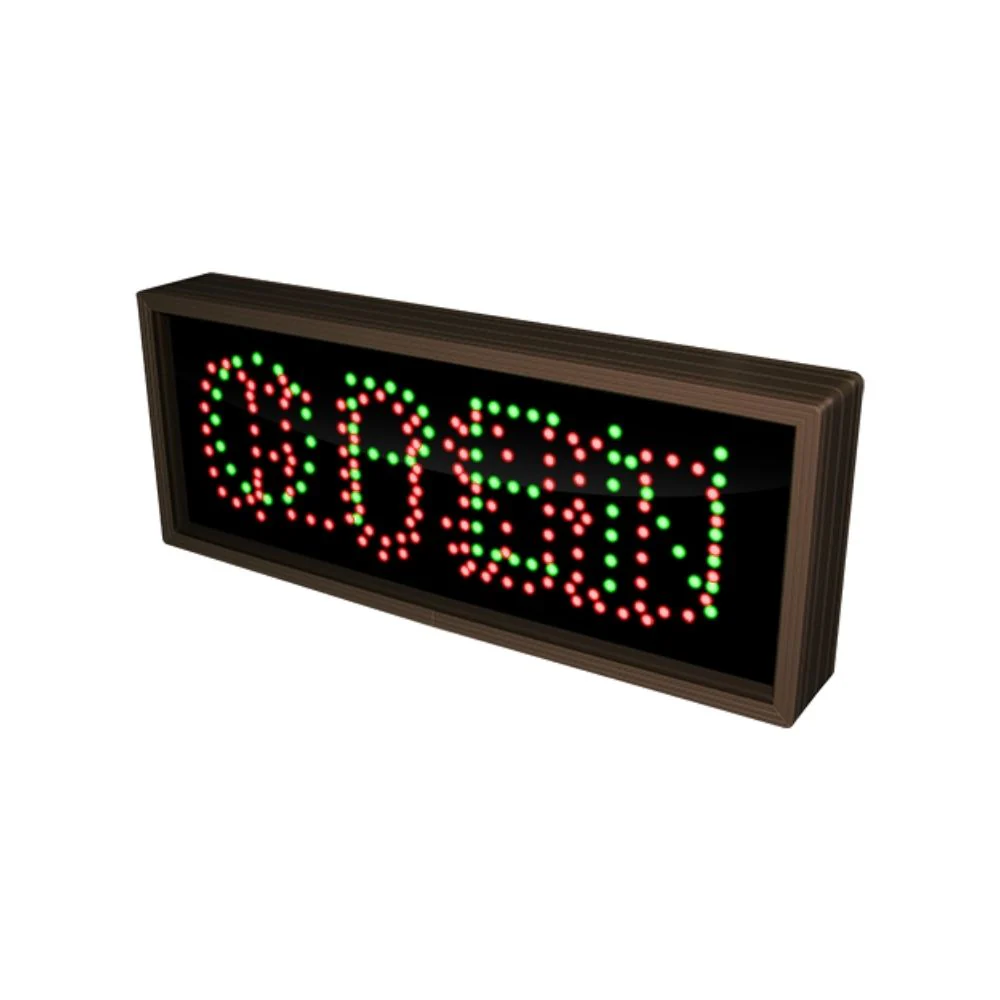

Signal-Tech OPEN | CLOSED | FULL TCL718GRR-202/120-277VAC | SIG-5907

Signal-Tech OPEN | CLOSED | FULL TCL718GRR-202/120-277VAC | SIG-5907

This TCL Series OPEN | CLOSED | FULL (120-277VAC) outdoor, blank-out sign is designed with super bright LEDs and a contrasting face; we guarantee it's readable in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message(s) when turned on and blank out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. It has a corrosion-resistant, all-weather cabinet and ships with our Lift'N Shift back for wall mounting. Ceiling, post, and wall-projection mountings are available. The standard cabinet finish is Duranodic Bronze; custom paint finishes are available. The sign can be controlled by a switch or third-party relay. Control switches can be purchased separately. UL/cUL Listed for wet locations.

Includes

• Built-in Lift'N Shift Wall Mount

Technical Specifications

• Product #: 5907
• Product Line: TCL (Outdoor Blank-out LED Direct-view Sign)
• Model: TCL718GRR-202/120-277VAC
• Dimensions: 7" H x 18" W x 2.5" D
• Weight: 4.223 lbs.
• Faces: Single Face
• Face Material: 1/8" Smoked Polycarbonate(5109)
• Illumination: TCL LED
• LED Viewing Angle: Wide Angle LEDs
• Input Voltage: 120-277 VAC
• UL/cUL Listed: Wet Locations
• Finish: Duranodic Bronze
• Mounting Channel: None
• Flashing: Not Included
• Cabinet: Combo 2.5"
• Warranty: 5 Year Warranty

Messages	Message Color	Character Height
OPEN	Green Wide Angle LED	3.5"
CLOSED	Red Wide Angle LED	3.5"
FULL	Red Wide Angle LED	3.5"

Manufacturer's Warranty

• 5 Years

Product Video

Product Literature

• Signal-Tech OPEN | CLOSED | FULL Installation & Wiring
• Signal-Tech OPEN | CLOSED | FULL Troubleshooting Your Sign
• Signal-Tech OPEN | CLOSED | FULL Replacing a New Power Supply
• Signal-Tech OPEN | CLOSED | FULL Replacing an Old Power Supply
• Signal-Tech OPEN | CLOSED | FULL Specifications Sheet
• Signal-Tech Manufacturer's Warranty
