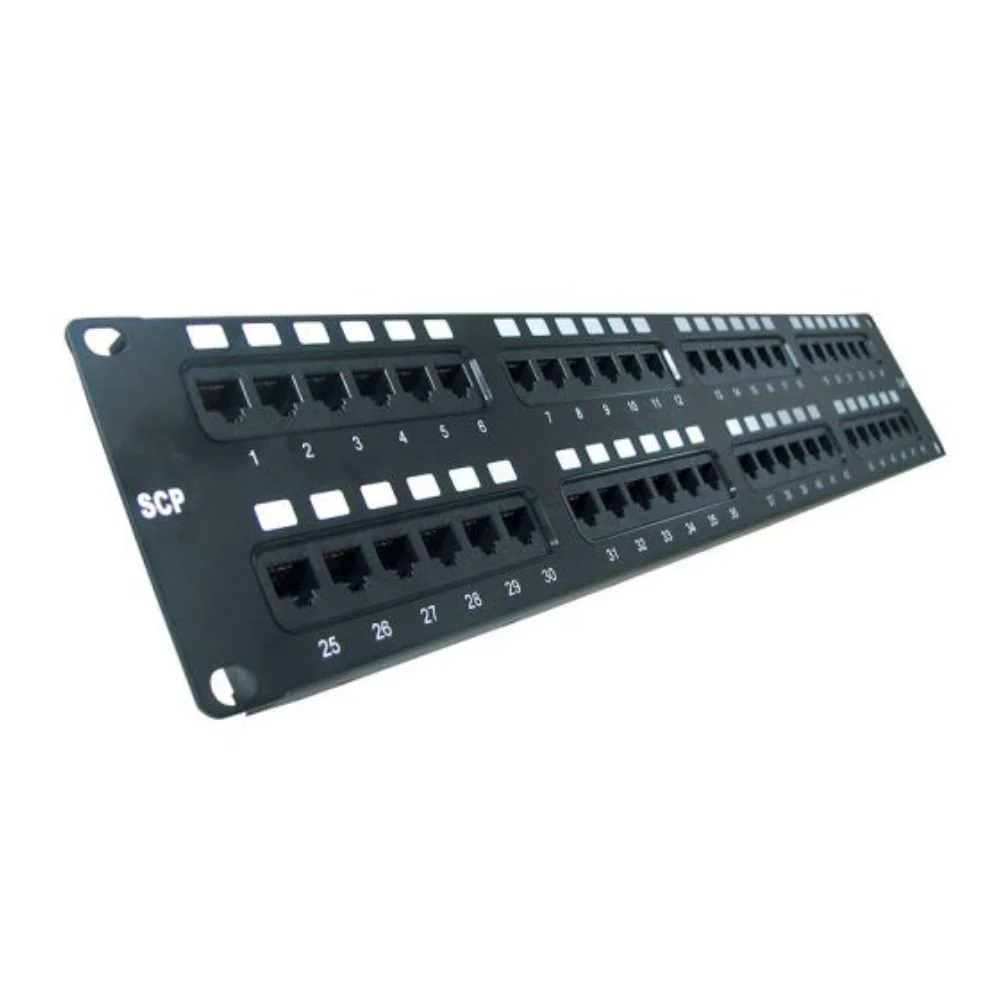

SCP 48 Port Loaded Unshielded Cat5e Class D Patch Panel | SCP-348
48 Port Loaded Unshielded Cat5e Class D Patch Panel, 2RU w/ Rear Cable Management
SCP Rack Mount RJ45 110-Style Patch Panels easily mount to standard TIA 19-inch racks. Our patch panels feature rear IDC 110-Punchdown Modules. IDC compatible for 110 and Krone tools. Panels are universal fit with heavy-duty steel construction, scratch-resistant powder-coat finish; 110 terminals Color Coded T568A/T568B Wiring Labels.
Features
- IDC compatible for 110 and Krone tools
- Universal fit panel with heavy-duty steel construction
- Scratch-resistant powder-coat finish
- Includes Cable Ties
- 110 terminals Color Coded T568A/T568B Wiring Labels
- Gold Plated RJ45 port contacts
- ANSI/TIA 568.2-D
- ISO/IEC 11801 Class D
- PoE IEEE 802.3bt
- 2 RU
- FCC Part 68
- RoHS Compliant. Reach Compliant
- UL
Specifications
Physical
- Panel: SPCC with Black Coating
- RJ45 Jack Holder: High Impact, Flame Retardant Plastic, UL 94V-0
- RJ45 Spring Wire: Phosphor Bronze with 50u Gold plating
- 110 Connector: Phosphor Bronze with 100μin 100% tin alloy
- 110 Connector Holder: Polycarbonate
- Mounting Bracket: ABS
- Dimensions: 10 in W x 1.7 in D x 3.3 in H / 25.4 cm W x 4.4 cm D x 8.4 cm H
- Weight: 0.6lb (0.3kg)
Electrical Characteristics
- Contact Resistance: <=20m Ω
- Insulation Resistance: >=500M Ω
- Dielectric Withstand Voltage: 1000V AC @ 60 Hz for 1 min
- Current Rating: 1.5A at 68°F
Mechanical
- Transmission Performance: ANSI/TIA 568.2-D Category 6 (1 MHz–500 MHz)
- Transmission Media: Unscreened Twisted Data Cable
- Plug Insertion Life: >=750 times plugin
- Contact Force: 0.98N using FCC plug
- Plug Retention Force: 30lb (133n/13.3Kg)
- IDC Insertion Force: 4.5 kg min.
- IDC Retention Force: 0.5 kg min
Environmental
- Operating Temperature: 14 - 140°F (-10 - 60°C)
- Storage Temperature: 40 - 154°F (-40 - 68°C)
- Operating Humidity: 10 – 90%, non-condensing
