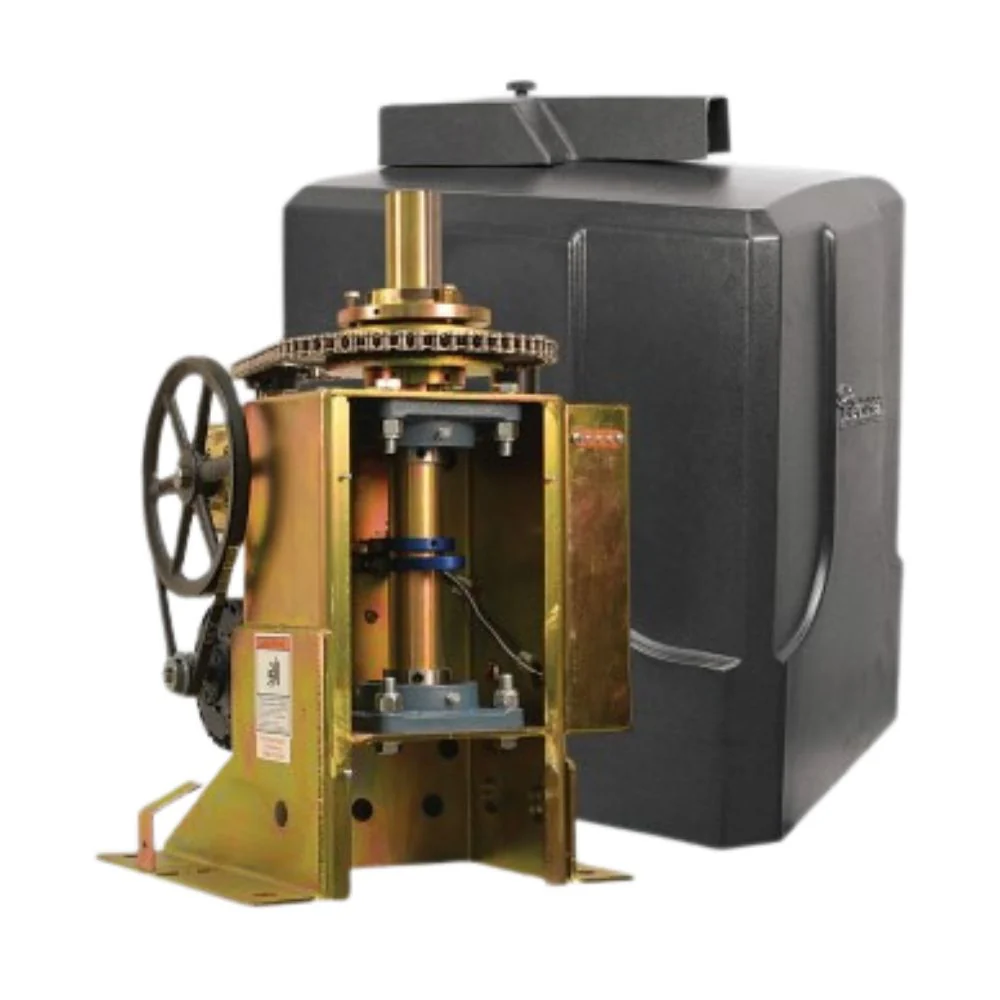

Ramset Commercial / Industrial DC High-Traffic Swing Gate Operator | RAM-30-30-DC

Ramset Commercial / Industrial DC High-Traffic Swing Gate Operator | RAM-30-30-DC

The Ramset Commercial / Industrial DC High-Traffic Swing Gate Operator is an ideal choice for the highest level of security and performance. This top-of-the-line gate operator is designed for residential and commercial applications, offering dependable, long-term performance and power efficiency.

Features

• Heavy Duty Worm Gear: Lubricated in an oil bath for smooth and quiet operation.
• Limit Switches: Mechanical adjustment for accurate gate stop settings
• Cover: High-impact charcoal-resistant gray polyethylene.
• Finish: Gold/Zinc plated to inhibit corrosion.
• Ramset "Intelligate" Control Board: The Intelligate Control Board is the most advanced gate controller in the industry, putting Ramset ahead of the competition when it comes to reliability and number of features. It is controlled by a programmable microprocessor that reads and precisely executes all functions of the control board.

Technical Specifications

• Maximum gate size & Weight: 20’ @ 3000 lbs
• Gate traveling speed: Approx 90° opening in 16 sec
• Motor: 3/4 Hp, 1 Hp
• Duty cycle: Continuous
• Operating temperature: -10º F to 160º F
• Power failure release: Knob Release or Battery Back Up
• Overall dimensions: H: 27½” L:  17½” W: 23½”

Product Literature

• Ramset 30 30 Swing Gate Operator Cut Sheet
• Ramset 30 30 Swing Gate Operator Instructions Manual
