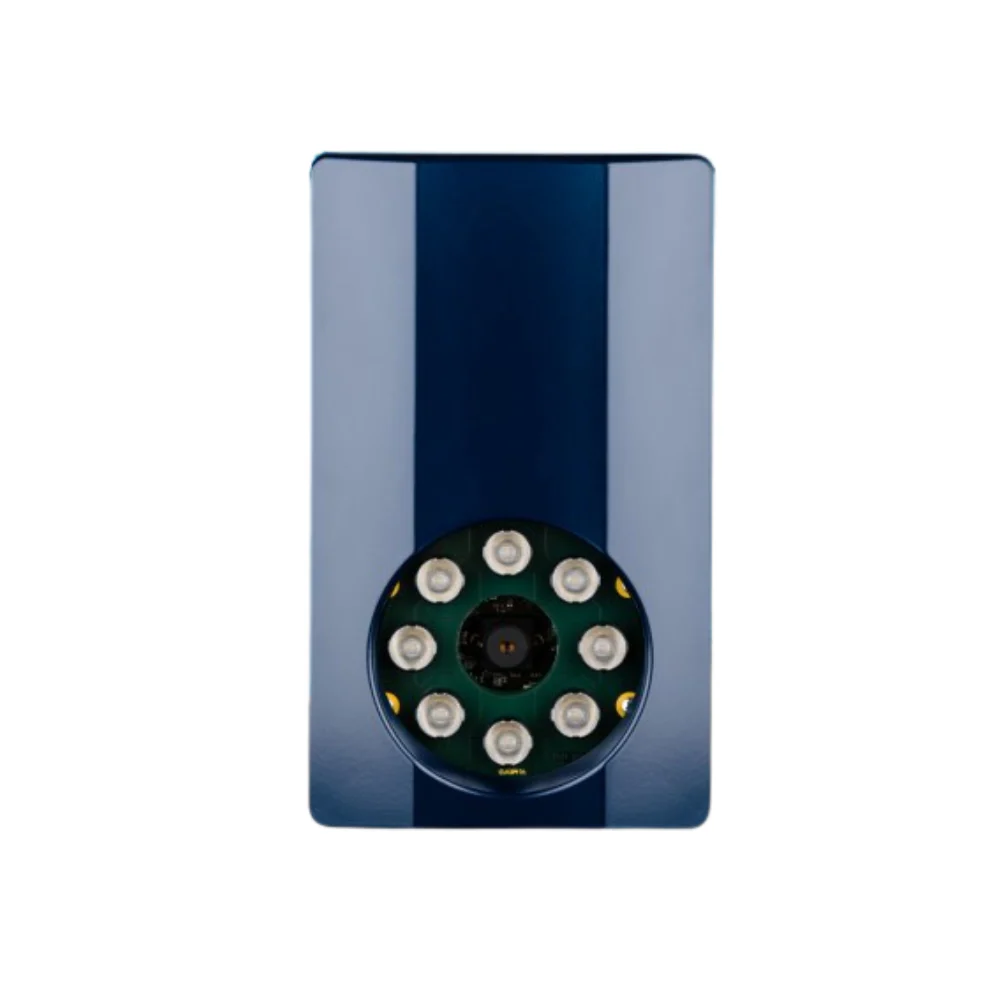

Nedap ANPR Lumo | NED-9986138

Nedap ANPR Lumo | NED-9986138

License plate camera for vehicle access control.

The ANPR Lumo is an all-in-one license plate camera, including embedded software, analyzer and IR illuminator. With a read range of 2 to 8 meters (6.5 to 26 feet), the robust camera ensures a smooth recognition of vehicles. Deep learning algorithms makes it possible to get high accuracy numbers in harsh conditions, and plates with different font formats.

Typical applications include vehicle access control, automatic toll collection, free flow applications at parking facilities or other situations in which it not desirable to issue RFID tags. If vehicles need to be granted access temporarily or incidentally, the license plate camera is the perfect solution.

Features

• Automatic number plate reading
• Range of action 2 - 8 meters (6.5 - 26 feet)
• Deep learning algorithms
• World-wide countries available
• All-in-one license plate camera
• Easy user configuration
• Power over Ethernet (PoE)
• Built-in Wiegand modes

Technical Specifications

• Part number: 9986138 ANPR Lumo
• Dimensions: 221 x 131 x 126 mm (8.7 x 5.2 x 5 in)
• Color: RAL9006 chassis and RAL5011 cover
• Weight: 2.5 kg (5.5 lbs)
• Protection class: IP65 (approx. NEMA4x)
• Material Cover: HIBS, Housing Die-casting Silafont 3
• Operating temperature: -20 ... +55°C (-4… +131°F)
• Storage temperature: -30… +55°C (-22… +131°F)
• Relative humidity: 10% ... 93% relative humidity, non-condensing
• Power supply: 24 VDC +10% linear supply recommended or POE
• Power consumption: 8 Watt
• Read range:
• Distance: 2 to 8 meters (6.5 to 26 feet)
• Width: Up to 3,5 meters (11.5 feet)
• Object speed:
• Freerun: Up to 30 km/h
• Triggered: Up to 250 km/h
• Supported license plates: IR reflective number plates
• Camera optics: 12 mm (½ inch)
• Image sensing resolution: 1/1.8” CMOS sensor, 1280 x 1024 pixel, SXGA
• Camera illuminator: IR850 nm
• Communication interfaces: 1 line half duplex selectable baud rate, cable distance 1200 meter (3937 feet) 10/100 Mbps, TCP, UDP, FTP, HTTP, DHCP Wiegand 26 BIT sha1, Wiegand 64
• Relay output: 2 relay outputs
• Input: 2 digital inputs (opto-isolated)
• Output: Read results from number plates and/or images taken by the camera
• Cable specifications:
• Network (CAT5E)
• Power + IO: (LiCY) 8 x 2 x 0.14 mm2
• Cable length:
• Network: 5 meters (16.4 feet)
• Power + IO: 5 meters (16.4 feet)
• Data message customization: String syntax fully configurable for integration with access control systems and third party software
• Storage: 10 GB
• Standards: CE and UL
• Included accessories: Pole/wall mounting kit included
• Document version number: 1.2
