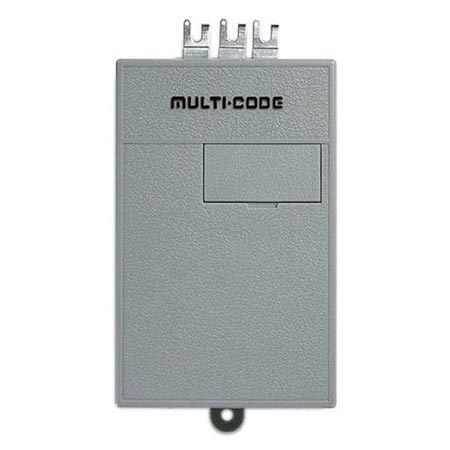

Multi-Code 1-Channel Receiver | MUL-109020
Designed for use in residential garage door operator applications. Typically the receiver mounts directly to the three terminals on the door operator. An 11-inch wire antenna extends from the receiver.
The operator supplies 24-volt power to the receiver, or the receiver can be powered by a separate 24-volt AC power transformer. Remote power accessories available for the Model 109020 include the Model 109201 Wiring Harness and the Model 109207 Wiring Harness. Both models include a plug-in transformer.
The receiver’s exclusive two-way terminal lugs fit under terminal screws or can be used with push-on terminals in remote placement applications using the Model 109206 3-Wire Adapter.
The receiver is programmed with a 10-position coding switch. When a Multi-Code transmitter set to the same code is activated, the receiver’s output will activate, triggering the door operator.
Technical Specifications
- Channel: 1
- Power: 24 VAC
- Codes: 1,024 (set by dip switches)
- RF frequency: 300 MHz
- Dimensions: 3″ W x 5.5″ H x 1.5″ D
Compatibility
- This model is compatible with 300 MHz Multi-Code transmitters only.
Product Literature
Description
Multi-Code 1-Channel Receiver | MUL-109020
Designed for use in residential garage door operator applications. Typically the receiver mounts directly to the three terminals on the door operator. An 11-inch wire antenna extends from the receiver.
The operator supplies 24-volt power to the receiver, or the receiver can be powered by a separate 24-volt AC power transformer. Remote power accessories available for the Model 109020 include the Model 109201 Wiring Harness and the Model 109207 Wiring Harness. Both models include a plug-in transformer.
The receiver’s exclusive two-way terminal lugs fit under terminal screws or can be used with push-on terminals in remote placement applications using the Model 109206 3-Wire Adapter.
The receiver is programmed with a 10-position coding switch. When a Multi-Code transmitter set to the same code is activated, the receiver’s output will activate, triggering the door operator.
Technical Specifications
- Channel: 1
- Power: 24 VAC
- Codes: 1,024 (set by dip switches)
- RF frequency: 300 MHz
- Dimensions: 3″ W x 5.5″ H x 1.5″ D
Compatibility
- This model is compatible with 300 MHz Multi-Code transmitters only.
