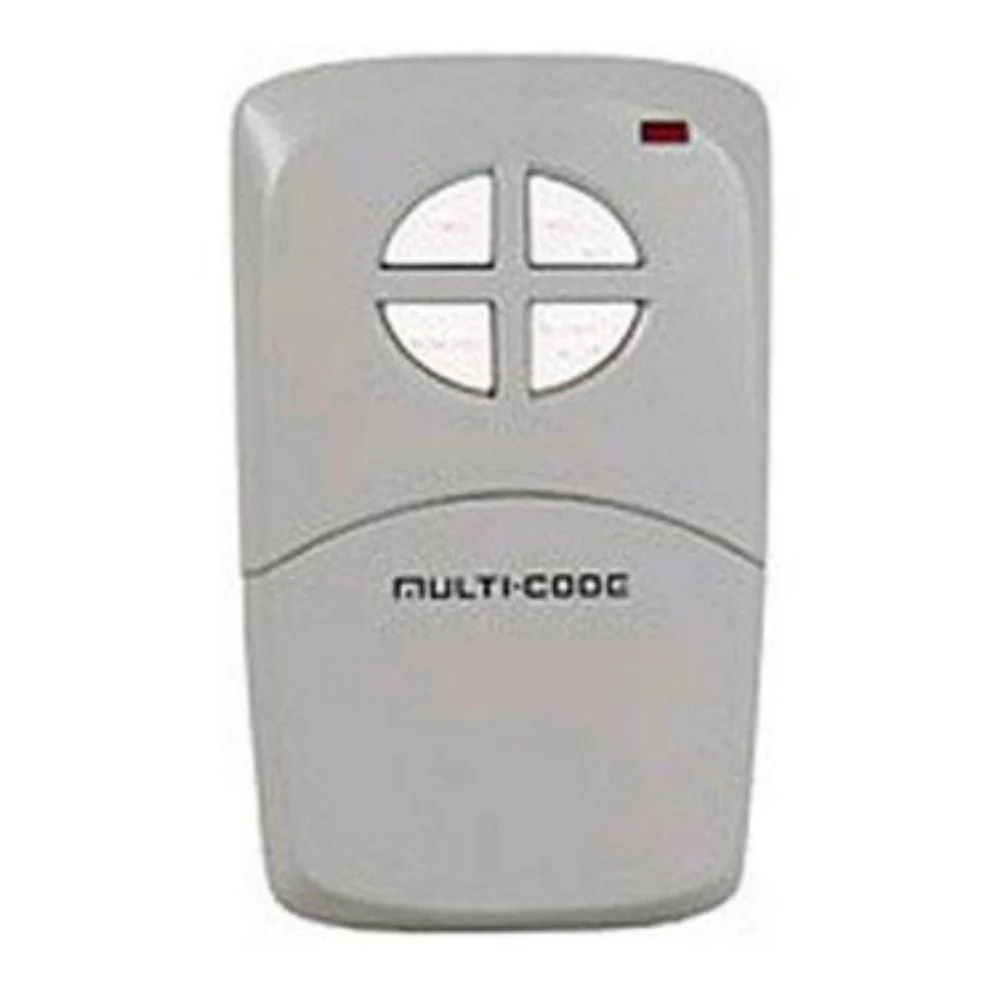

Multi-Code 4-Channel Visor Transmitter | MUL-414001

Multi-Code 4-Channel Visor Transmitter | MUL-414001

This transmitter is a four-channel device designed for automatic door and gate operator applications. Each button activates one of the four channels.

The transmitter is Multi-Code format with two 10-position coding switches providing 512 possible codes for each channel. The transmitter will only activate receivers set with the same code.

Includes

• Visor clip

Features

• Easy access to battery and coding switches

• Test/operate indicator
• The buttons have raised dimples for easy, or vision-impaired identification

Compatibility

• 300 MHz Multi-Code Receivers
• Multi-Code 109950
• Multi-Code 302850

Technical Specifications

• Power: 9-volt battery
• Codes: 512 codes for each channel (set by dip switches)
• RF frequency: 300 MHz
• Dimensions: 2.5″ W x 3.75″ H x 0.875″ D

Product Literature

• Multi-Code 414001 Installation Manual
• Multi-Code 414001 Product Brochure
