Miller Edge Slide Gate Sensing Edge Monitored 4' with Mounting Channel | MLE-MG110-K10-2E-04-T2

Miller Edge Slide Gate Sensing Edge Monitored 4ft with Mounting Channel | MLE-MG110-K10-2E-04-T2

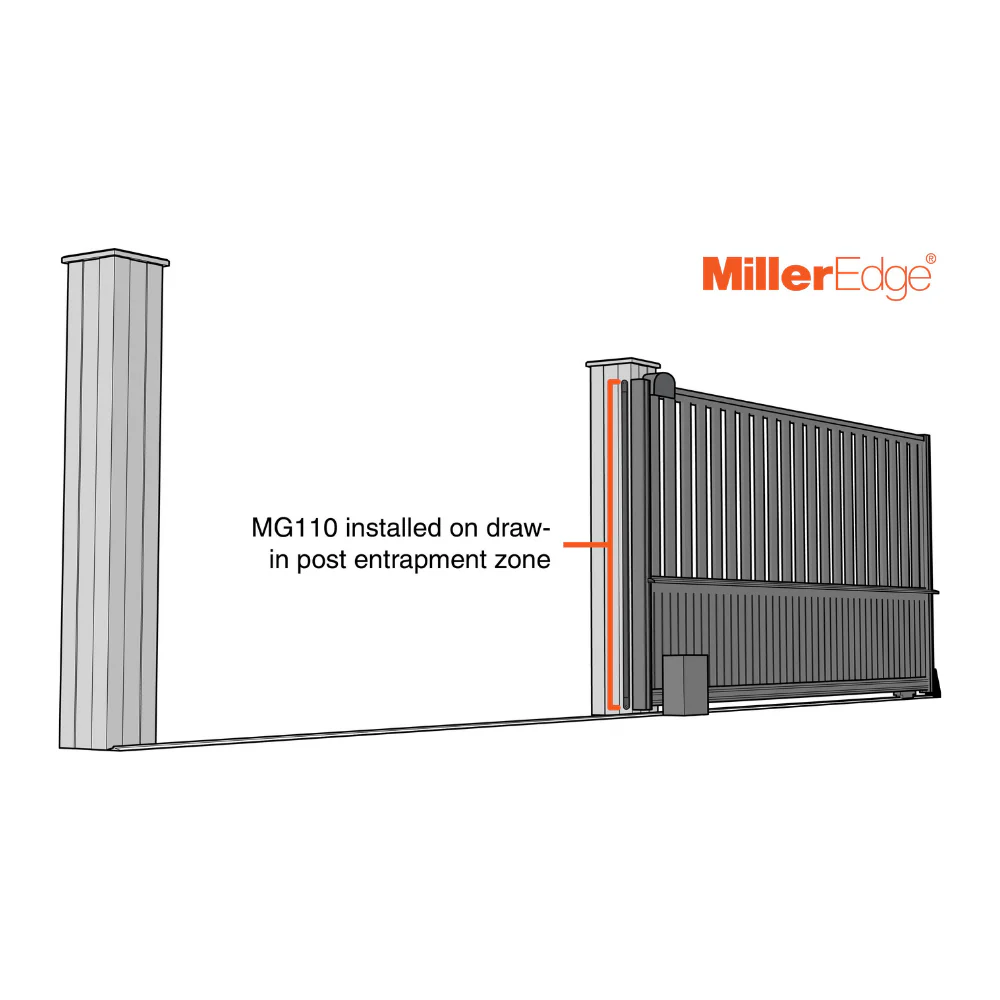

The small profile of the MG110 electric sensing edge is specially designed to protect draw-in posts, pockets, and pivot points in gate installations. When touched lightly, MG110 will send an immediate electrical signal to operator controls to stop and/or reverse gate operation.

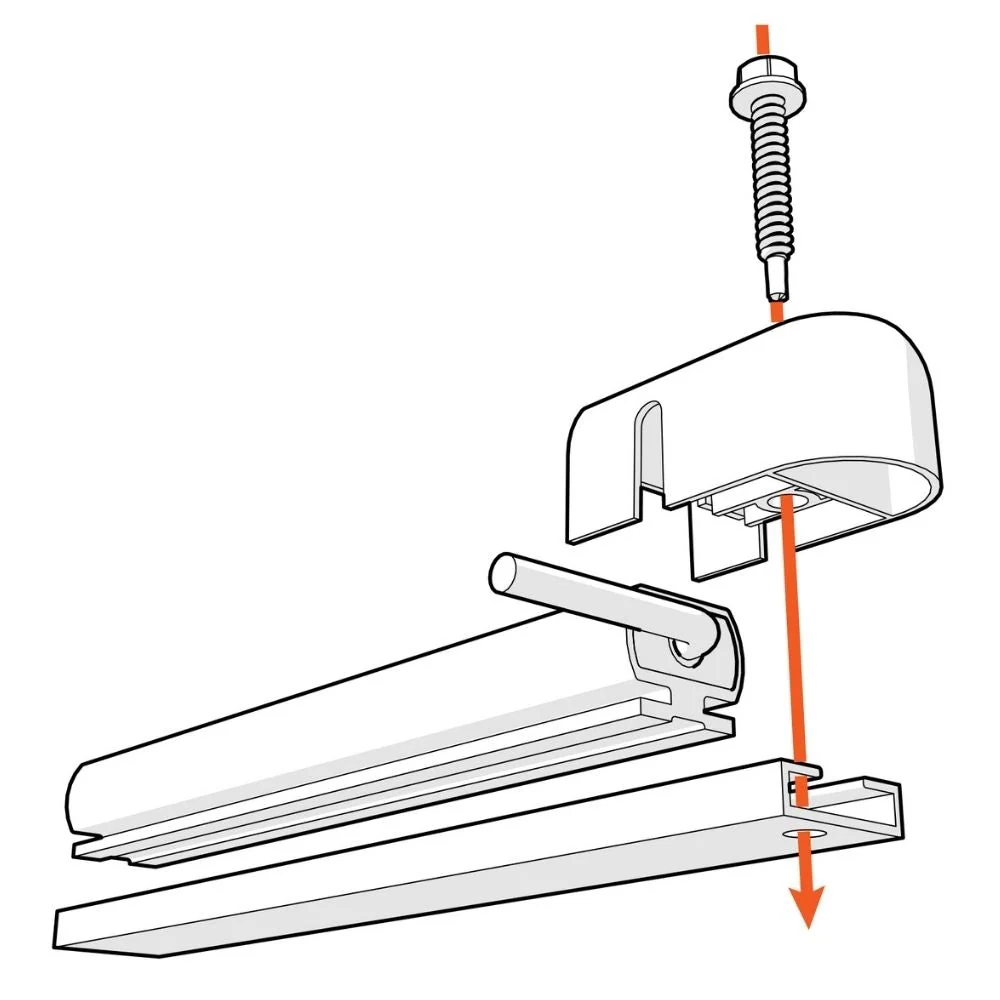

Includes

• 1 MG110 sensing edge
• 1 ME110-C mounting channel
• 2 molded nylon end caps
• 2 stainless steel self-drilling mounting screws

Features

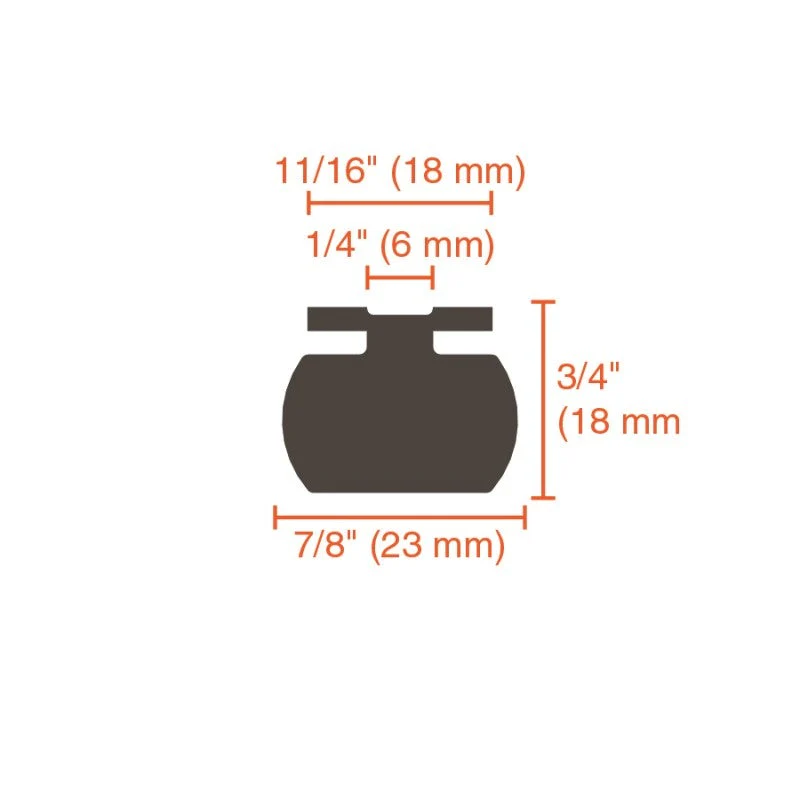

• Small profile
• Easy to install
• Standard and custom lengths available

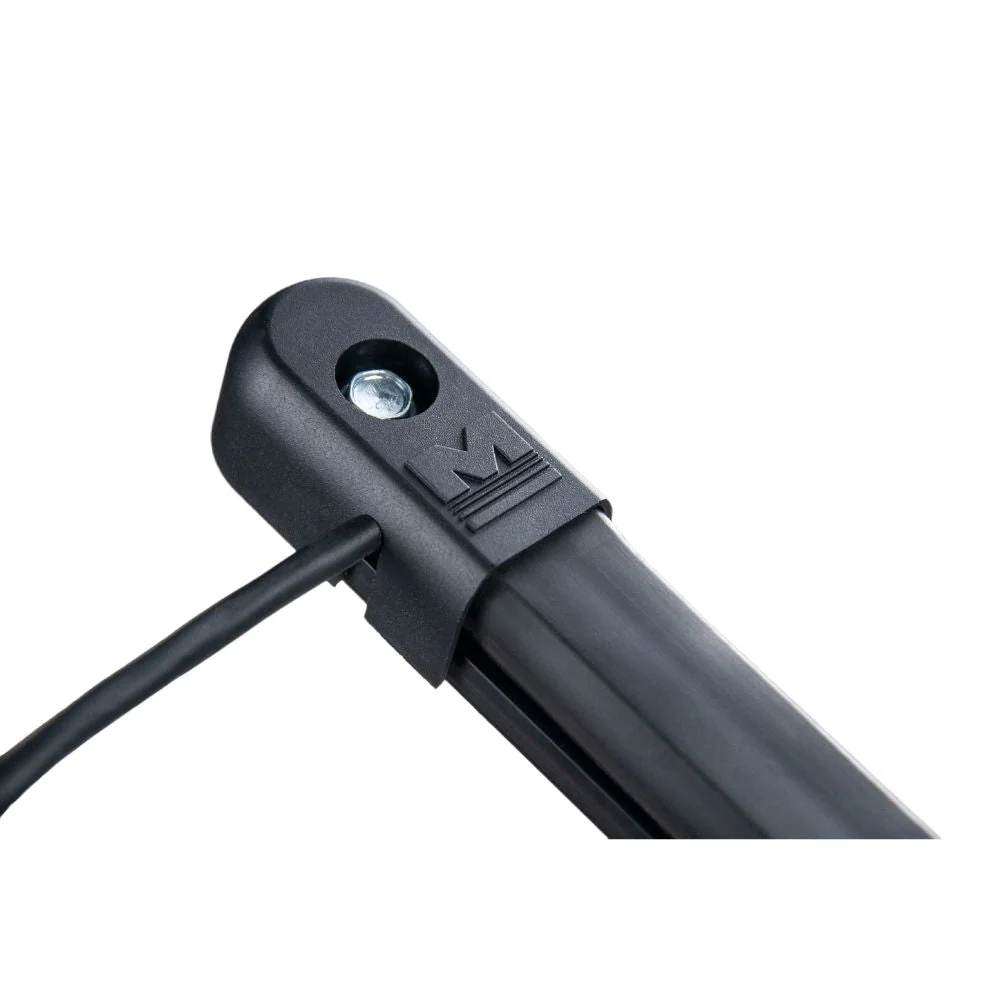

• Molded end caps provide a clean, finished look
• Patented Alumaglas™ for superior performance (electric option)
• Mounts vertically or horizontally
• Sealed assembly impervious to dust and debris
• UL 325 Recognized Component
• 1-year warranty
• Made in the USA

Applications

• Motorized gates
• Slide gate draw-in posts
• Pockets & pivot points
• Barrier arms

Configurations

• Monitored
• 2-Wire
• 10K resistor
• 8.2K resistor
• Diode capacitor
• 4-Wire

Technical Specifications

• Color: Black
• Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
• Maximum Length: 50 ft.
• Sensitivity: Nominal 4-7 lbf
• Lead Wire: SJTO, 22 gauge, 2 ft. length
• Wire Outlet Location: Field selectable left or right
• Electrical Maximum: 24 volts AC/DC, 1/2 amp
• Electrical Configuration: Normally open
• Operating Temperature: -30 °F to 155 °F (-34 °C to 68 °C)
• Exterior Materials: Flexible PVC
• Contact Element: Alumaglas™
• Agency Approvals: UL 325 Recognized Component

Product Literature

• Miller Edge MG110-K10-2E-04-T2 Spec Sheet
• Miller Edge MG110-K10-2E-04-T2 Installation Manual
