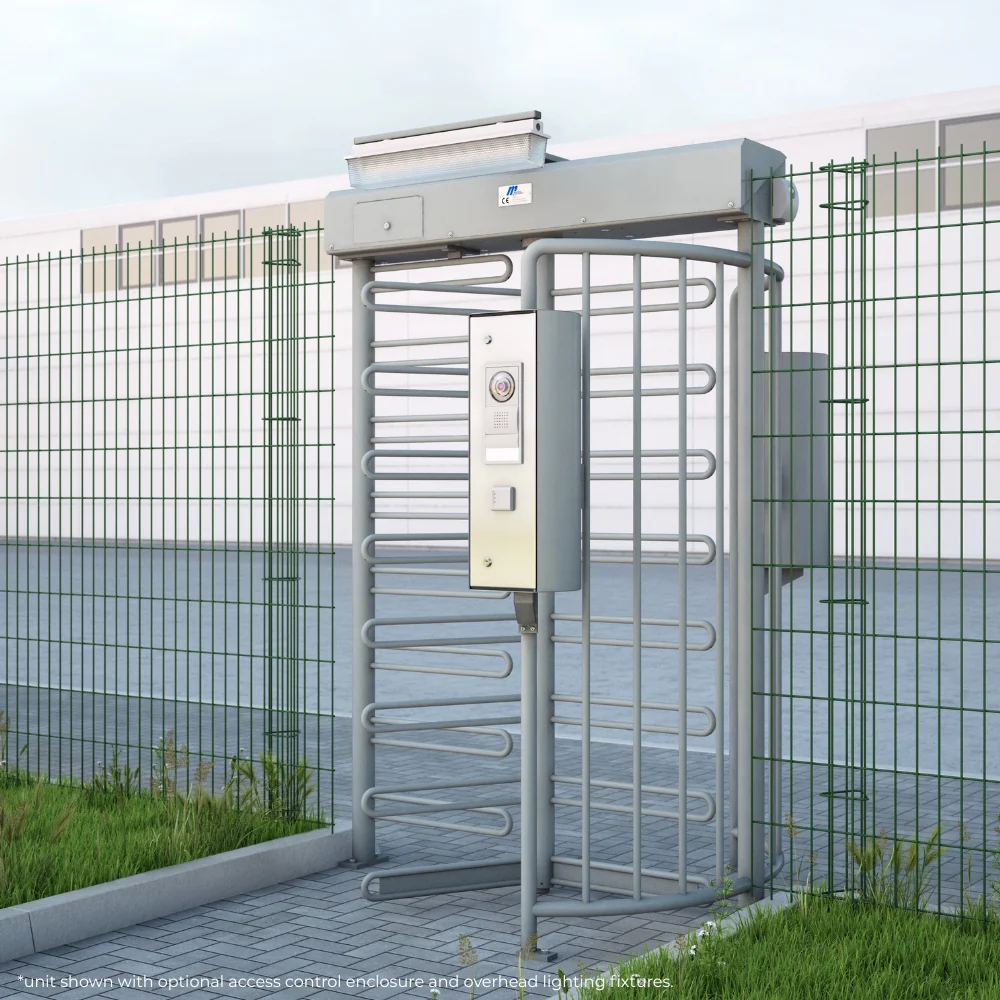

Magnetic Autocontrol MPT Full-Height Single-Lane Motorized Turnstile (RAL 7042/SS 316) | MAG-MPT132C-C340

Magnetic Autocontrol MPT Full-Height Single-Lane Motorized Turnstile (RAL 7042/SS 316) | MAG-MPT132C-C340

For persons in outdoor areas

Magnetic MPT turnstiles are the ideal solution for controlling access indoors or outdoors where many people will enter or leave an area expediently. MPT turnstiles can be precisely adapted to your intended purpose thanks to the drive variations offered: the electric motor-driven MPT 132 turnstile is set in motion by means of an energy-efficient, maintenance-free MHTM™ drive unit – the first choice for representative security for outdoor areas and company grounds.

Both drive versions can be controlled by means of all conventional access control systems and can be operated bi-directionally as an option. MPT turnstiles can also be individually adapted to your requirements in other ways.

All MPT Full-Height Turnstiles now feature the well-known logic controller MGC (Magnetic Gate Controller). The MGC control unit is equipped with one plug-in module, MFM01. Further functionality is possible with additional plug-in modules.

Note

Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, don't hesitate to get in touch with customer support at (800) 730-8382.

Innovative drive technology
The MHTM™ drive unit (optional) is maintenance-free, energy-efficient, and has an exceptional soft-start action.

Maximum safety
Low-impact force and sensitivity contact detection offer optimum protection for pedestrians.

Easy access to components
All the components necessary for operation are contained in the main header beam, simplifying assembly, setup, and maintenance

Features

• Reliable securing of outdoor areas and company grounds with high rates of pedestrian traffic
• Electromechanical or motorized designs are available
• Sensitive impact detection for maximum safety
• Numerous options, e.g., expansion for wheelchair access
• Designed for 10 million opening and closing actions

Manufacturer's Warranty Period

• 2 years or 2 million cycles (whichever occurs first)

Technical Specifications

• Controller Technology: MGC
• Number of wings (angle): 3 (120°)
• Drive technology: MHTM™
• Voltage: 110 – 240 VAC, 50/60 Hz
• Power consumption: approx. 50 W (without accessories)
• Duty cycle: 100 %
• Enclosure rating: IP 43
• Power Type: Motorized
• Finishing Details: Frame and top cover are fully powder coated in RAL 7042, Center column is SS 316
• Dimensions (L x W x H): 59.4" x 59.1" x 88.0"
• Weight: approx. 550 lb
• Temperature range: −13 to +131°F

Options

• Material: powder-coated steel in standard colors, powder-coated steel in special colors, stainless steel 316
• Reaction to power failure: Free access or auto-locking (secure) on power failure
• Attachments: Overhead illumination, Gate End Display (GED), Access Control System/Coin Box Enclosure
• Expansions: Controlled access for bicycles, wheelchairs, and the transport of material (MPG 162)

Product Literature

• Magnetic Autocontrol Full-height Turnstile Single-lane Brochure
• Magnetic Limited Warranty Policy
