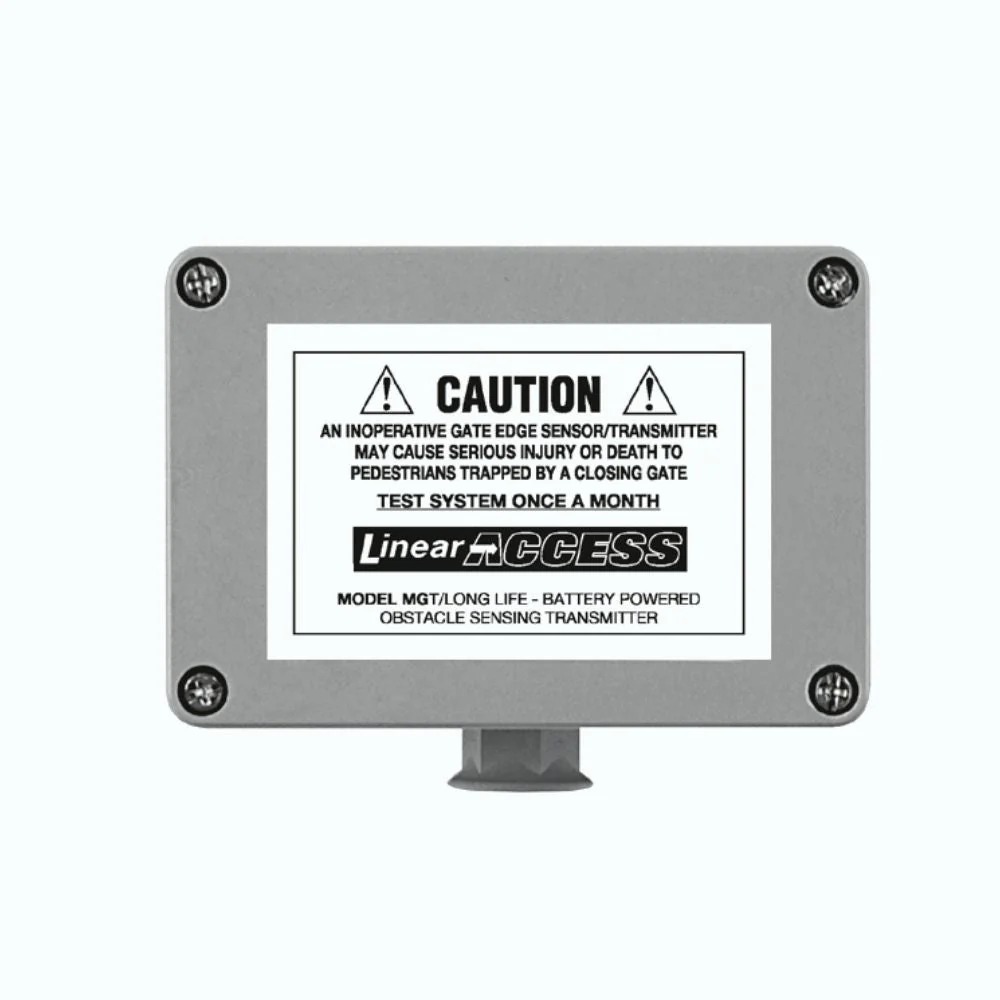

Linear MegaCode Gate Edge Transmitter Kit | LIN-2510-372
The Model MGT Gate Safety Edge Transmitter is for adding fully supervised obstacle sensing for motorized gates, doors, or barrier arms in a Linear access control system. The transmitter mounts directly on the gate, door, or barrier and wires to a standard exterior safety edge sensor (for full-featured compatibility, a Miller gate edge sensor with an optional .001 uF capacitor is recommended). If an object is hit during the gate closing, the sensor will present a closed circuit across the connecting wires and the MGT will transmit a message to the access controller to reverse the movement of the gate. The MGT is compatible with AE-500, AE1000Plus, AE2000Plus, and AP-5 commercial telephone entry and access controllers. It is also compatible with RE-1 and RE-2 residential telephone entry systems.
The MGT is the industry’s only fully supervised gate safety edge transmitter. It automatically sends an hourly status report to the access controller, indicating battery condition and if the transmitter is operational. Should the edge sensor be disconnected, shorted, or tampered with, the MGT will report a trouble condition.
The MGT transmitter is supplied in a weather-resistant, fiberglass box. Its circuit board is coated to prevent moisture damage. The enclosure mounts to the gate, door, or barrier arm through sealed interior mounting screws.
Includes
- Visor Clip
- Mounting Hardware (4 screws)
- (2) 3V 2450 lithium batteries
Features
- Safety edge transmitter
- Signals access controller for a stop or reverse when safety edge activates
- No cables or coiled wires
- Full Supervision: Automatic, hourly status report to the controller of battery condition, operating status, or trouble condition; tamper triggered by cover removal
Technical Specifications
- RF Frequency: 318 MHz
- Battery Life: Up to 5 years
- Color: Gray case
- Power: Two 3V 2450 lithium batteries
- Dimensions: 4″ W x 4.28″ H x 2.2″ D
- Codes: 1,000,000+ (MegaCode format)
- Order number: DNT00068
Compatibility
- Linear AM3Plus
- Linear AE1000Plus
- Linear AE2000Plus
- Linear AE-500
- Linear RE-1
- Linear RE-2
- Linear AP-5
- Linear APeX Controller equipped gate operators and MegaCode receivers
