HySecurity SlideDriver 40 | HYS-SlideDriver40

HySecurity SlideDriver 40 | HYS-SlideDriver40

Note: This product has been discontinued and is no longer available.
It has been replaced by the new SlideDriver II SD40, offering improved performance and updated features.

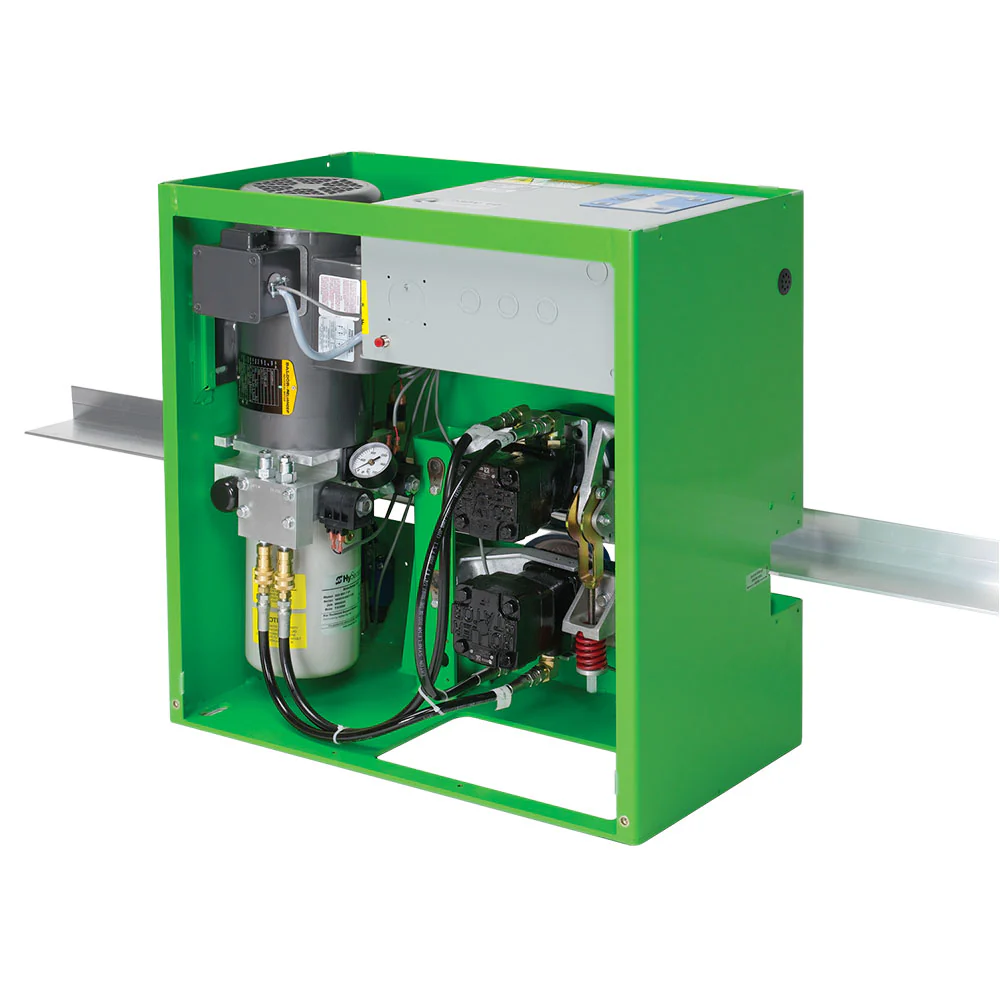

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous-duty operator is renowned for decades-long life and low maintenance.

Cycle up to 4,000 lb gates of any length at 1 ft/s (1,814 kg / 30 cm/s). Powerful hydraulic motors rotate two compressed polyurethane AdvanceDrive™ wheels, smoothly cycling a rigid drive rail/gate.

Note: Order optional XtremeDrive™ System (patent pending) for locations where roll-resistant gates or harsh snow and ice conditions risk loss of drive wheel traction. XtremeDrive™ System increases traction with its innovative rack-and-pinion-like design. Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).

Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Operator Components

Model: SlideDriver 40

• Part Number: 222 E ST
• Est. Ship Weight: 260 lb
• Shipping Dimensions: 26"w x 30"d x 35"h
• Shipping Class: 70

Product Literature

• SlideDriver Product Brochure
• SlideDriver Installation Instructions (all models)
• SlideDriver Installation Instructions (Spanish)
• SlideDriver Programming & Operations Manual (all models)
• AC Power Supply with HyInverter AC Installation Reference Manual
