HySecurity SlideDriver 30F-M | HYS-SlideDriver30F-M

HySecurity SlideDriver 30F-M | HYS-SlideDriver30F-M

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.

Motor, hydraulic pump, and electric controls are located in a remote enclosure to accommodate unique mounting, high security, environmental concerns or sites requiring quiet operation. Listed and restricted to UL 325 usage class III, IV due to high speed.

Note: Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).

Note: Please note that all operators come in 60 Hz.  If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Features

• Move the longest, heaviest gates up to 20,000 lb
• Modular Model (-M): Modular models locate the motor, hydraulic pump, and electrical controls in a separate remote enclosure to accommodate unique mounting, high security or sites requiring a very quiet operator.

Operator Components

Model: SlideDriver 30F-M Drive Unit

• Part Number: 333 EX 1.7
• Est. Ship Weight: 200 lb
• Shipping Dimensions: 26"w x 30"d x 35"h
• Shipping Class: 70

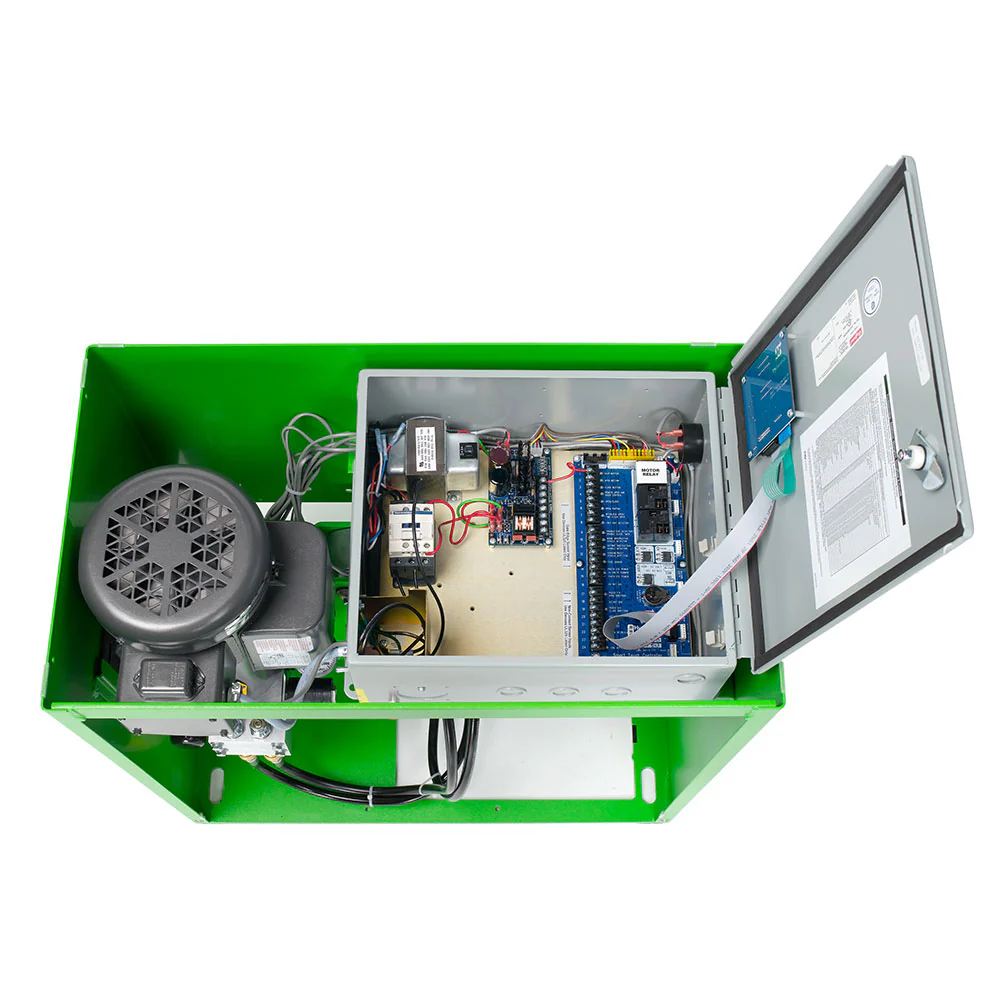

Model: SlideDriver 30F-M Power Unit

• Part Number: 333 EX ST
• Est. Ship Weight: 261 lb
• Shipping Dimensions: 40"w x 40"d x 50"h
• Shipping Class: 70

Product Literature

• SlideDriver Product Brochure
• SlideDriver Installation Instructions (all models)
• SlideDriver Installation Instructions (Spanish)
• SlideDriver Programming & Operations Manual (all models)
