FAAC S800H SBW 100° 24V Hydraulic In-Ground Operator (Single Kit)

FAAC S800H SBW 100° 24V Hydraulic In-Ground Operator (Single Kit)

The FAAC S800H ENC is an integrated automatic in-ground gate operator for a swinging gate leaf. It makes it possible to automate gates without altering their appearance. The operator includes the hydraulic control unit (pump) and the hydraulic drive unit in the same body. The model without a hydraulic lock device (SBW) requires an electrical lock to ensure that the leaf is mechanically locked.

The S800H ENC operator is designed and manufactured to automate swing leaf gates. Do not use for any other purpose.

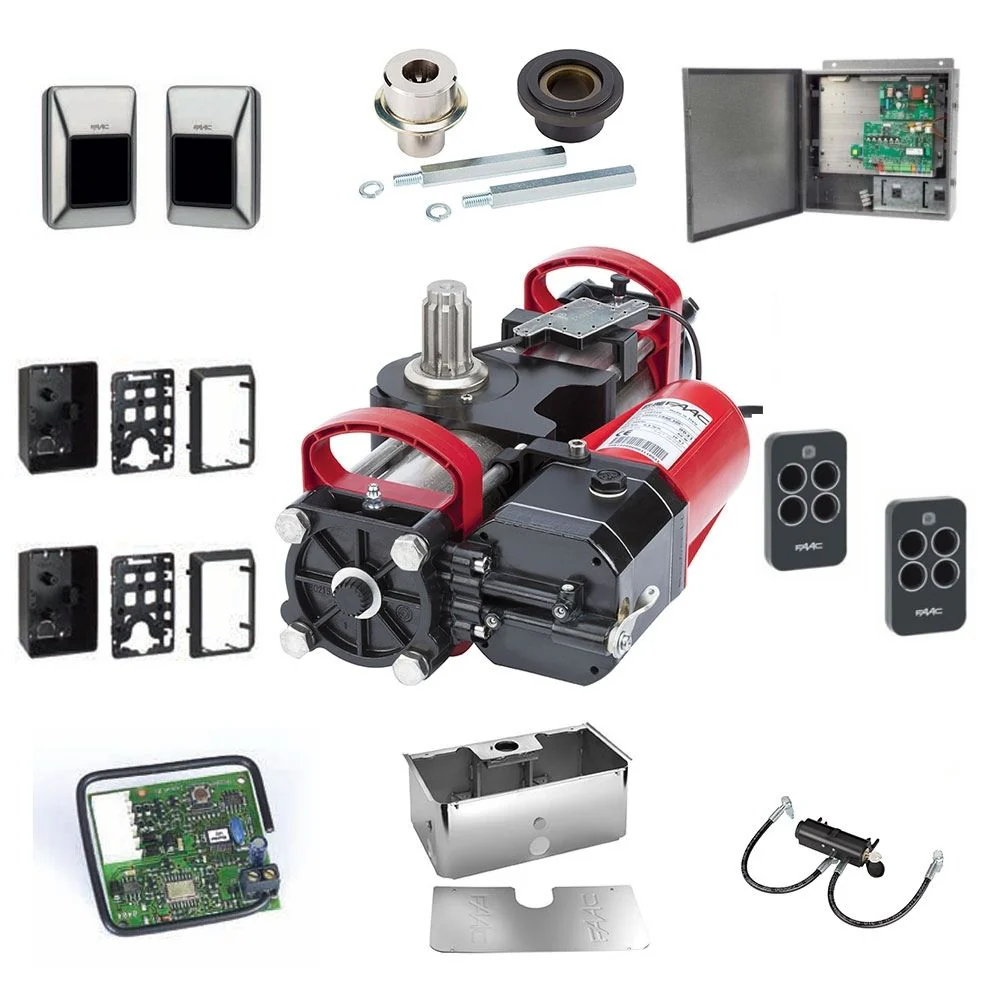

Includes

• 1 Operator S800H ENC SBW
• 390035 - 1 Hydraulic manual release
• 390972 - 1 Splined shaft collar with mounting bolts
• 1 Support Box (Regular or Stainless Steel)
• 5550.1 - 1 E024U Enclosure Kit (includes batteries)
• 787856 - 1 Receiver 433 RC Plug In
• 787453 - 2 4-channel transmitter XT4 433 RC
• 785105 - 1 Pair of XP30 Photobeams
• 401064 - 2 XP30 adapters for conduit connection

Manufacturer's Warranty Period

• 3 years

Notes

• Mounting dimensions, wind factor, and gate design will affect the performance specification
• Use frequency is measured at an ambient temperature of 72°F (20 °C) . Temperature variation will affect it.
• An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m).

Note: This product has an updated part number.

• New Part Number: 108714_5 (Old Part Number: 108714.5)
• New Part Number: 108714_5SS (Old Part Number: 108714.5SS)
