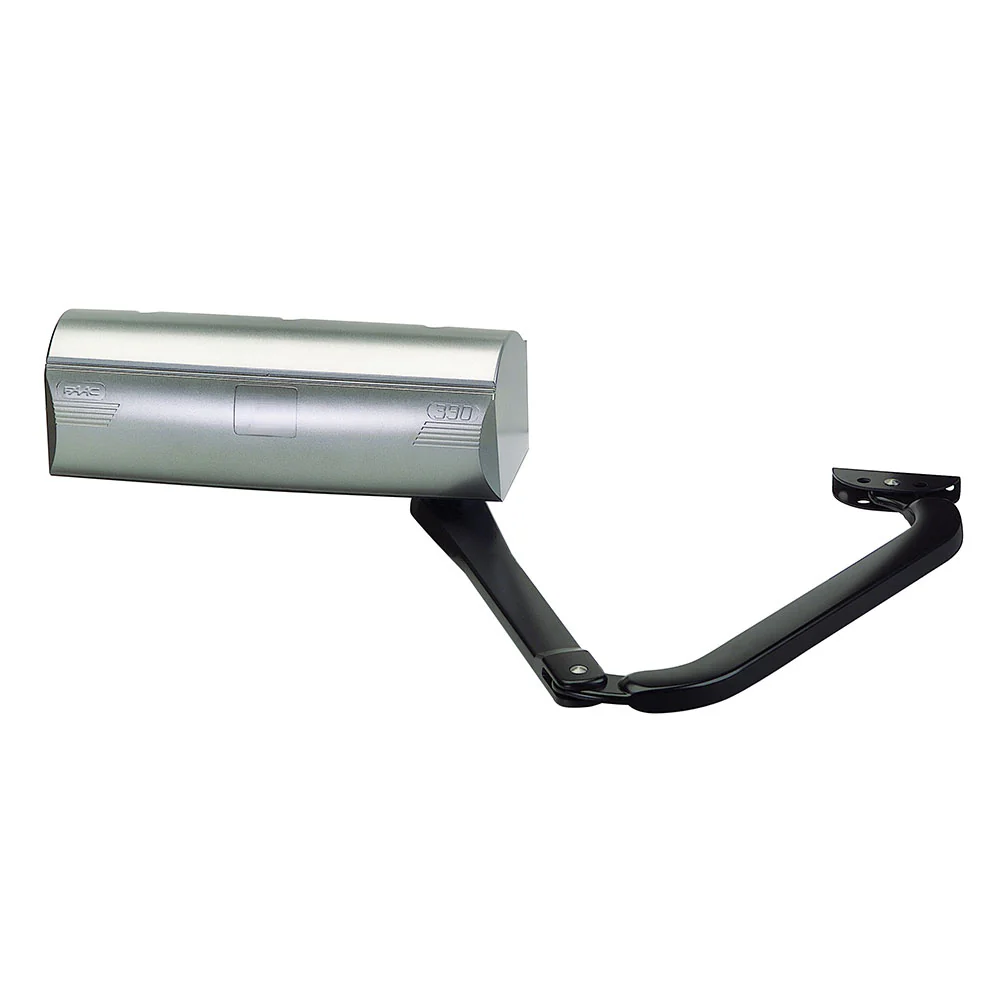

FAAC 390 Electromechanical Swing Gate Operator Only

FAAC 390 Electromechanical Swing Gate Operator Only

The FAAC 390 24V Operator is an automatic gate operator for a residential swinging gate leaf that is ideal for large columns. The self-contained 390 24V Operator consists of an irreversible electromechanical motor and articulated arm.

The 390 24V Operator locks the gate in the fully opened and fully closed positions; however, additional external locks are recommended if true security is needed or if the length of the gate leaf is 6 ft or longer.

For the protection and proper operation of the 390 Operator, optional limit switches are available.

The 390 24V Operator includes built-in reverse on contact and a torque adjustment that controls the force transmitted to the gate leaf through the operator.

The Manual Release mechanism is a key-operated device that disengages (or engages) the gears in the 390 24V Operator. When the drive is disengaged, you can open and close the gate leaf by hand.

The 390 Operator is designed and manufactured to automate vehicular swing leaf gates. Do not use for any other purpose.

Manufacturer's Warranty Period

• 3 years

Notes

• Mounting dimensions, wind factor, and gate design will affect the performance specification
• Use frequency is measured at an ambient temperature of 72 °F (20 °C). Temperature variation will affect it
• An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m)

Note: One of the products has an updated part number.

• New Part Number: 104579_5 (Old Part Number: 104579.5104579.5)
