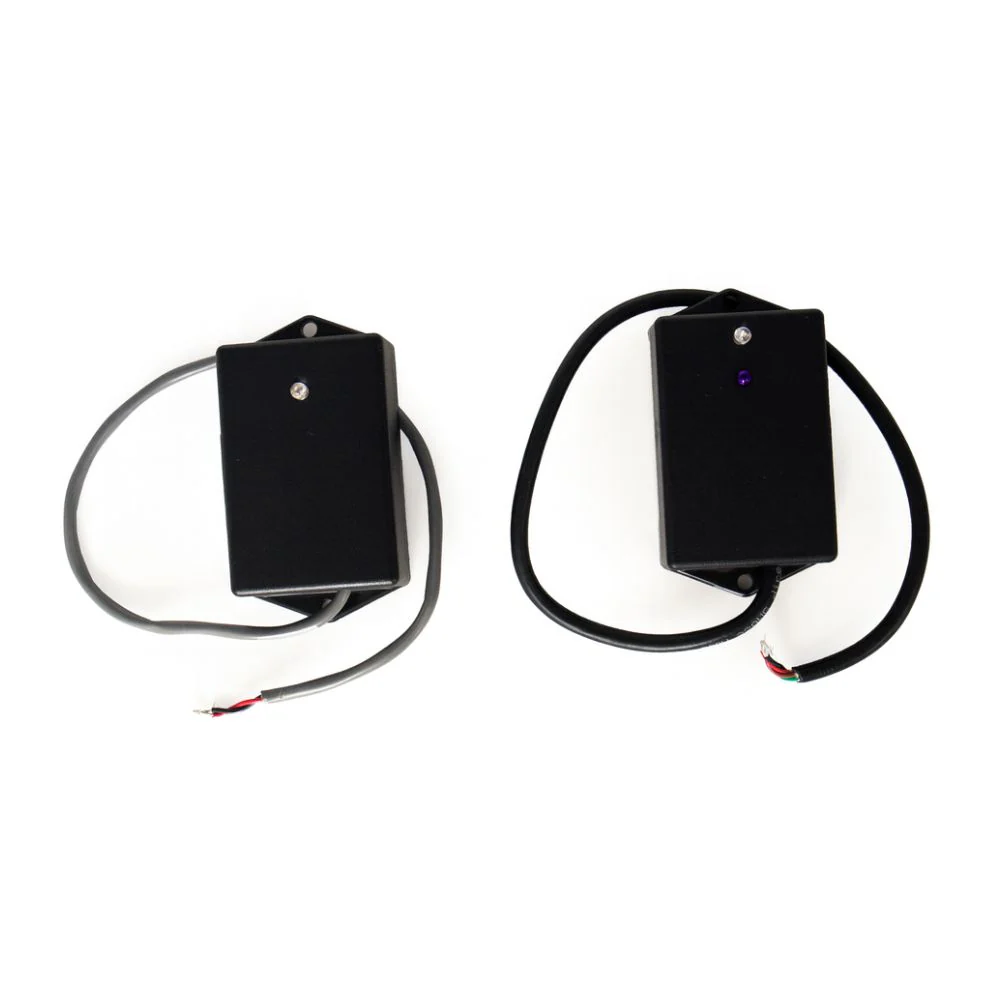

The PC-3 photocell is used as a safety device in conjunction with the automatic operator. The PC-3 will work with any control board that accepts dry contacts on the safety input. This easy-to-install, cost-effective photocell is used with garage doors and rolling doors. For sliding gates, swinging gates, and parking barriers, the IRB-4X is recommended.

Features

• LED alignment indicator simplifies installation.
• Supervised relay output provides an “open” signal in case of power failure.
• The non-reflective through-beam system is not affected by shiny surfaces.
• The modulated infrared beam is not affected by sunlight, rain, dust, or dirt.
• No calibration or sensitivity adjustments are necessary.
• A wide detection angle of 24 degrees simplifies installation and increases the reliability of operation.
• Indoor or protected outdoor operation of 30 feet.

Manufacturer's Warranty

• 2 years

Technical Specification

• Range: 30 feet
• Power: 12V – 24V AC or DC
• Relay Contacts: 1A @ 24VDC or 120VAC
• Dimensions: 4 in. x 2 in. x 1.5 in. 18” lead wire
• Housing: Black PVC * Not watertight

Note

• The PC-3 transmitter and receiver are mounted in line of the site at a distance of up to 30 feet apart. When the infrared beam is interrupted, the relay common and normally closed contacts in the receiver are closed. The LED indicator is lit when the PC-3 receiver is not aligned or when the beam is interrupted.
