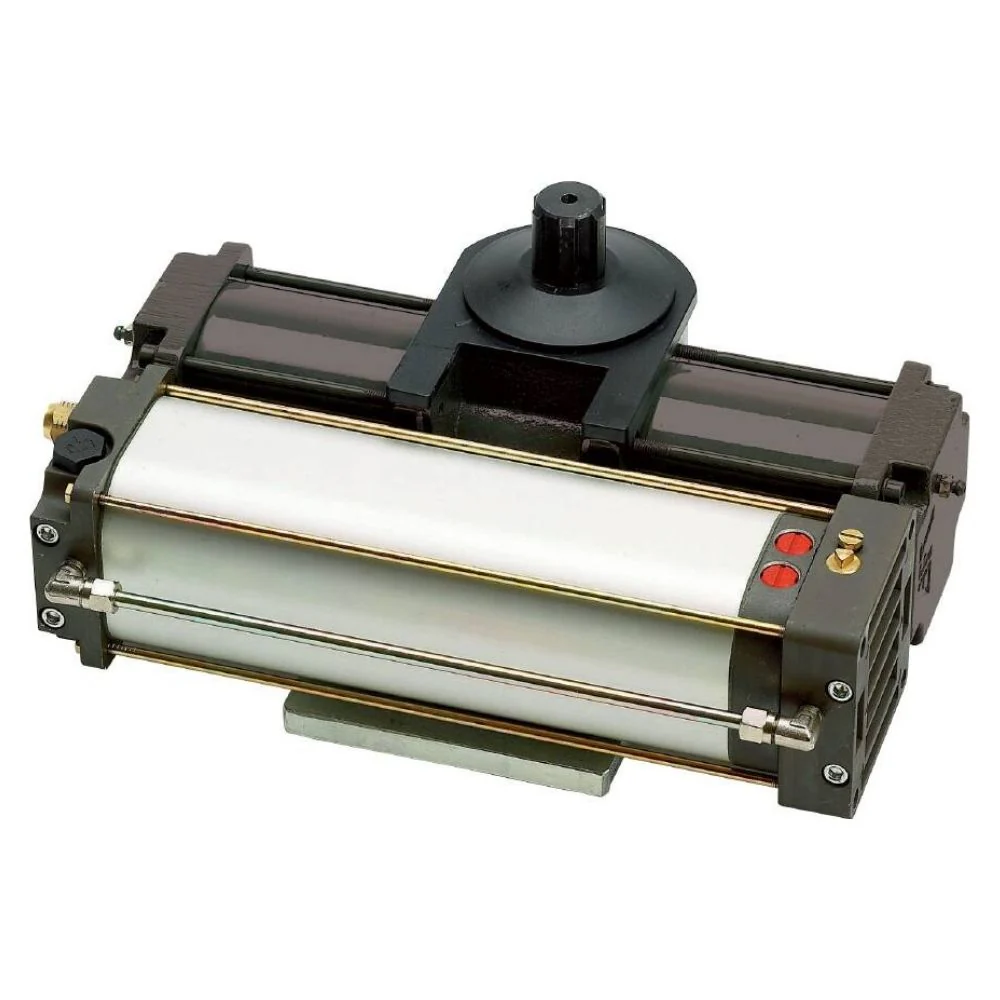

BFT SUB R UL/CSA 120V Left with CID SX -Left Side. Motor on left hand side of driveway from inside the property.

Features

• The monoblock structure gives the possibility of a very neat installation that is extremely reliable over time.
• The closing slowdown guarantees silent, smooth movements on even the biggest gates. Also, the adjustment screw makes it possible to adapt the slowdown intensity to the needs of each situation.
• Control unit with programming display and new, simplified scenario-based programming

Manufacturer's Warranty Period

• 2 Years

Technical Specifications

• Control panels: RIGEL 6 UL/CSA (suggested)
• Reversible/irreversible operator: Irreversible
• Power supply: 120 V 60 Hz single-phase
• Absorbed power: 0.33 hp (250W)
• Opening or closing time: 14 s
• Impact reaction: Hydraulic clutch
• Lock: Hydraulic opening/closing
• Manual release: Fast key release
• Operating cycle: Intensive use
• Environmental conditions: From 14°F to + 140°F
• Degree of protection: IP67
• Operator weight: 48lb
• Degree of opening: 125°

Product Literature

• BFT P930012 00008 Instruction Manual
• BFT P930012 00008 Spec Sheet
