$341.70
Original: $1,138.99
-70%BFT SUB G SC 230V Underground Swing Gate Operator Right -180 Degree Opening | BFT-P930010-00005—
$1,138.99
$341.70The Story

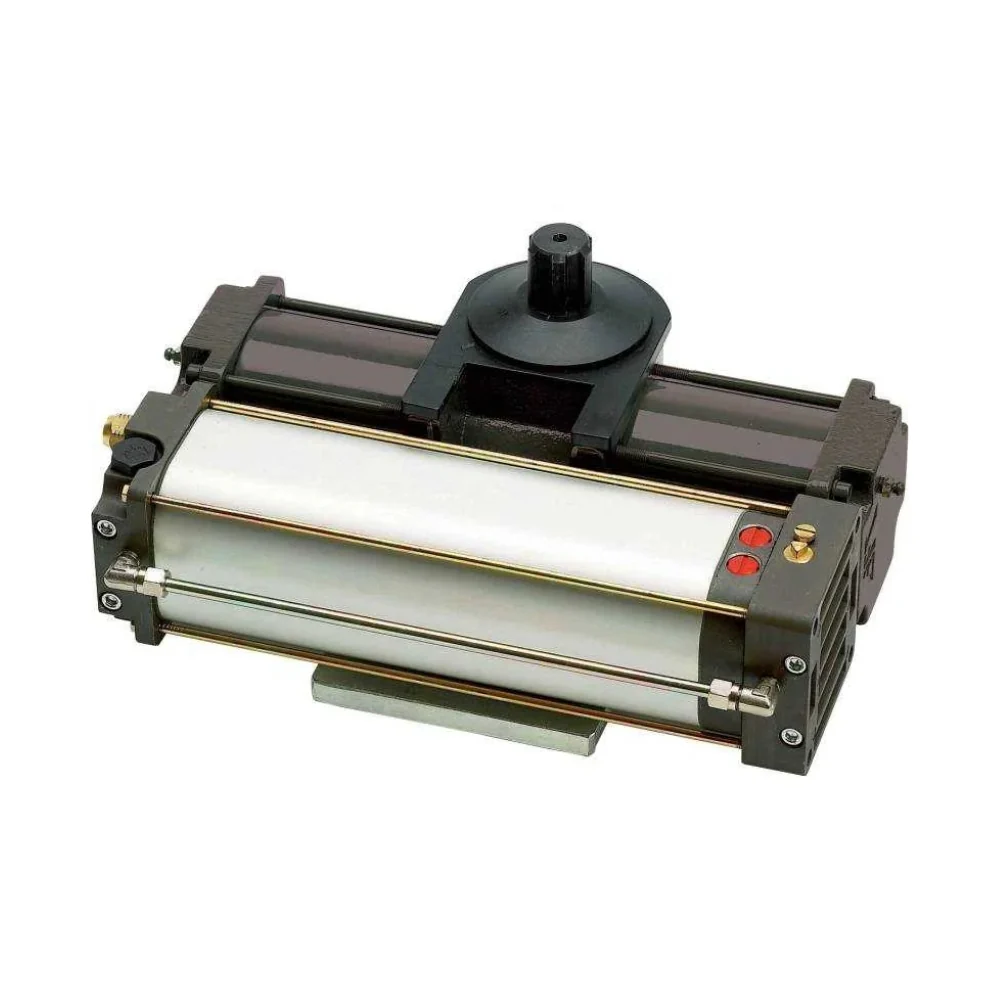

BFT SUB G SC 230V Underground Swing Gate Operator Right -180 Degree Opening | BFT-P930010-00005
In-ground 230 V hydraulic operator, Triangle key for hinged leaves up to 6'. Manoeuvre time 33 s. Right operator.
Features
- The monoblock structure gives the possibility of a very neat installation that is extremely reliable over time.
- The closing slowdown guarantees silent, smooth movements on even the biggest gates. Also, the adjustment screw makes it possible to adapt the slowdown intensity to the needs of each situation.
- Control unit with programming display and new, simplified scenario-based programming
Manufacturer's Warranty Period
- 2 Years
Technical Specifications
- Control unit: RIGEL 6
- Board power supply: 230 V
- Motor voltage: 230 V
- Power consumption: 250 W
- Max. width of door/gate wing: 6 ft (1.8 m)
- Max. weight of door/gate wing: 1763 lbs (800 kg)
- Maximum angle: 180 °
- Cycle time: 33 s
- Type of limit switch: Work time
- Slowdown: No
- Locking: Open/close hydraulics
- Release: Triangle key
- Impact reaction: Hydraulic clutch
- Frequency of use: Very intensive
- Protection rating: IP67
- Environmental conditions: 14 ÷ 140 °F (-10 ÷ 60 °C)
- Interconnectivity: No
Product Video
Product Literature
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
BFT SUB G SC 230V Underground Swing Gate Operator Right -180 Degree Opening | BFT-P930010-00005
In-ground 230 V hydraulic operator, Triangle key for hinged leaves up to 6'. Manoeuvre time 33 s. Right operator.
Features
- The monoblock structure gives the possibility of a very neat installation that is extremely reliable over time.
- The closing slowdown guarantees silent, smooth movements on even the biggest gates. Also, the adjustment screw makes it possible to adapt the slowdown intensity to the needs of each situation.
- Control unit with programming display and new, simplified scenario-based programming
Manufacturer's Warranty Period
- 2 Years
Technical Specifications
- Control unit: RIGEL 6
- Board power supply: 230 V
- Motor voltage: 230 V
- Power consumption: 250 W
- Max. width of door/gate wing: 6 ft (1.8 m)
- Max. weight of door/gate wing: 1763 lbs (800 kg)
- Maximum angle: 180 °
- Cycle time: 33 s
- Type of limit switch: Work time
- Slowdown: No
- Locking: Open/close hydraulics
- Release: Triangle key
- Impact reaction: Hydraulic clutch
- Frequency of use: Very intensive
- Protection rating: IP67
- Environmental conditions: 14 ÷ 140 °F (-10 ÷ 60 °C)
- Interconnectivity: No
