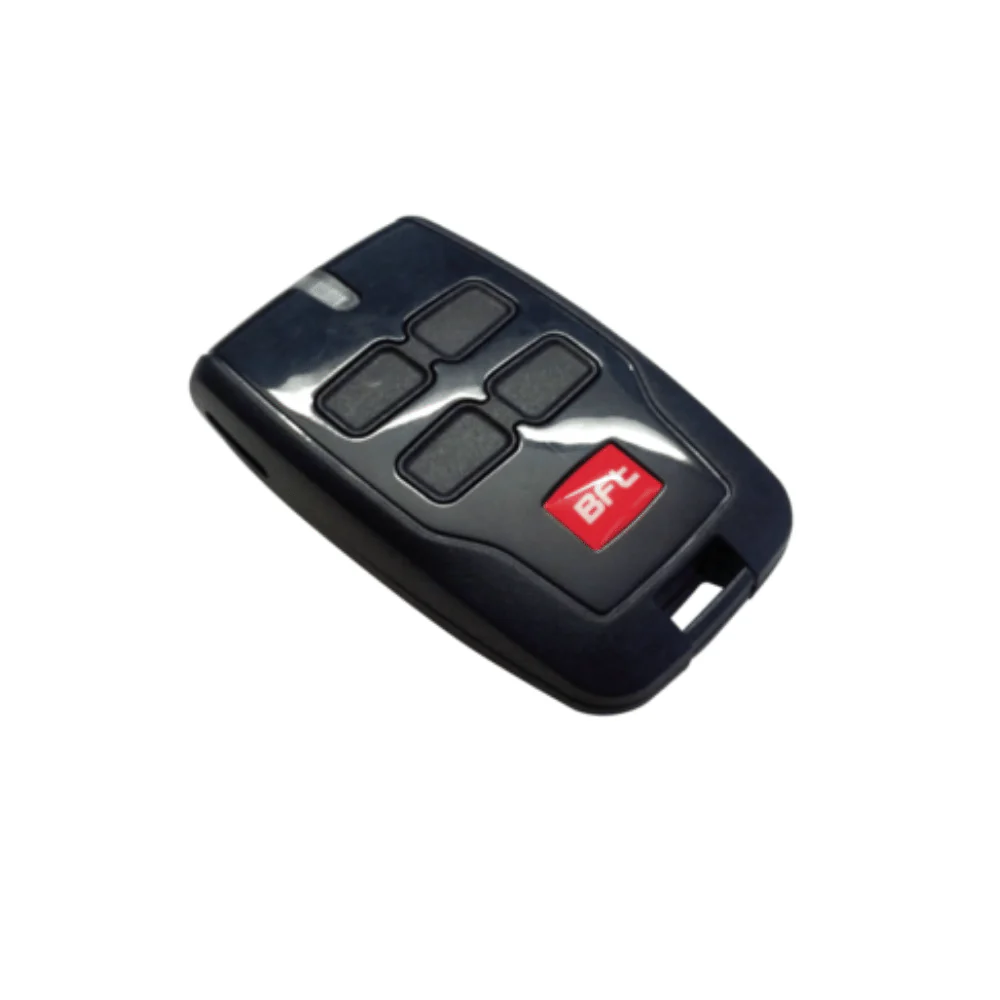

BFT MITTO B RCB04 R1 Transmitter (4 CH.) | BFT-D111906

BFT MITTO B RCB04 R1 Transmitter (4 CH.) | BFT-D111906

Transmitter with 4 channels. Range 50/100 m. Power supply 12 V with 1 battery type 23 A.

Technologies

• ROLLING CODE For safe transmission. BFT transmitters use a rolling code system that manages the commands in a completely secure way and prevents any type of external violation. When a transmitter key is pressed the command is sent to the control unit with a different code each time, identifiable only by the receiver and accepted only once. The algorithm generated then prevents the reproduction of the code.
• er ready The new coding system for direct cloning of remote controls Based on microprocessor technology, this system allows the cloning of any MITTO remote control in a MITTO REPLAY remote control. In fact, the first remote control "teaches" the second one the correct code which is automatically saved in the receiver the first time it is used. Everything occurs at the highest levels of security thanks to the use of the Rolling Code safe transmission system.
• EELINK For fast and safe programming. EELINK is a system developed by BFT that, by means of connection to handheld programmers (Unipro, Uniradio, and Proxima), makes it possible to transfer data from automatic systems to PCs and vice versa. Thus EEdbase or U-base, the databases of the information stored in the installed systems, are constantly updated. Thanks to this software it is possible to associate the necessary personal details with each system: owner's address and details, name of maintenance technician, names of every remote control holder, etc. With EElink, just press a few buttons to easily manage the customer base or preventive maintenance. Even operations that were once complex become easier: for example, reconfiguring the control unit or the radio receiver in case of replacement or the setup of a control panel, starting from a standard or custom configuration.

Manufacturer's Warranty Period

• 2 Years

Technical Specifications

• Voltage: 12 V
• Range: 50/100 m
• Number of buttons: 4
• Frequency: 433 MHz
• Number of batteries: 1
• Battery type: 23 A
• Coloration: ---
• Interconnectivity: no

Product Video

 Product Literature

• BFT D111906 Instruction Manual
