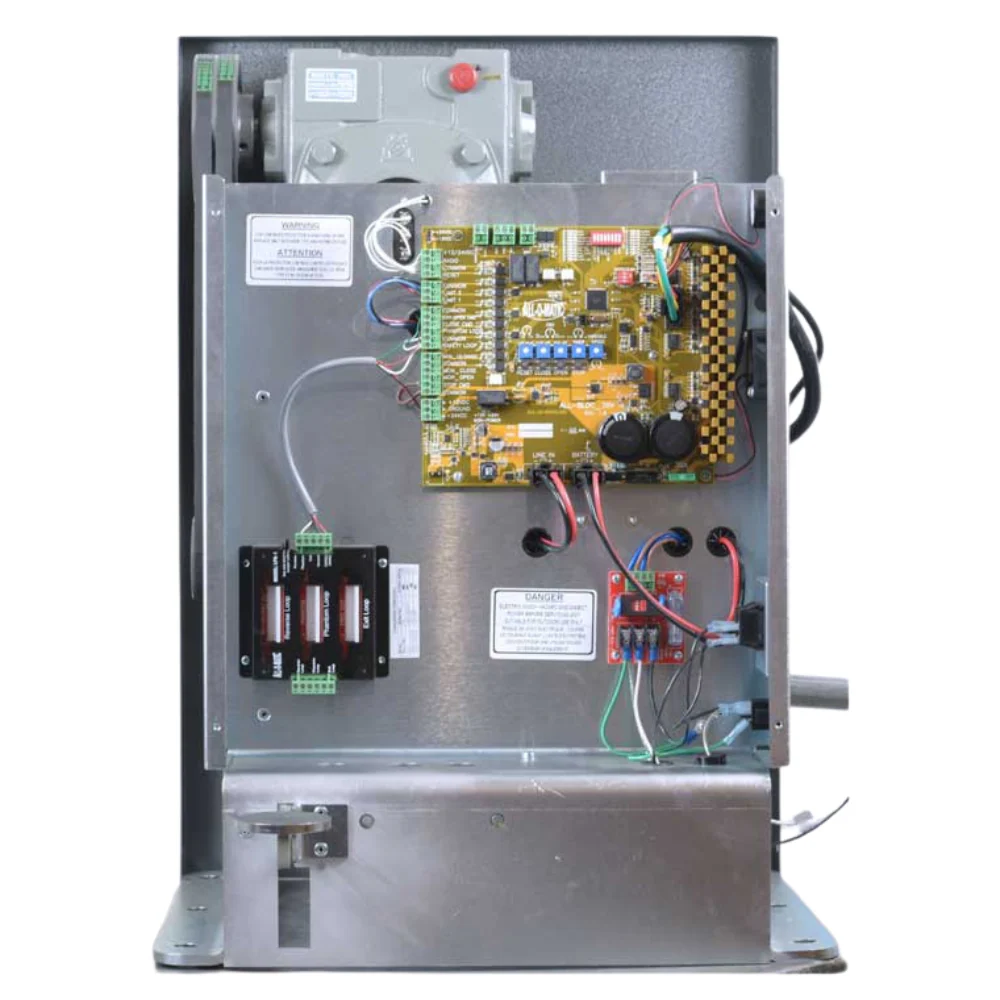

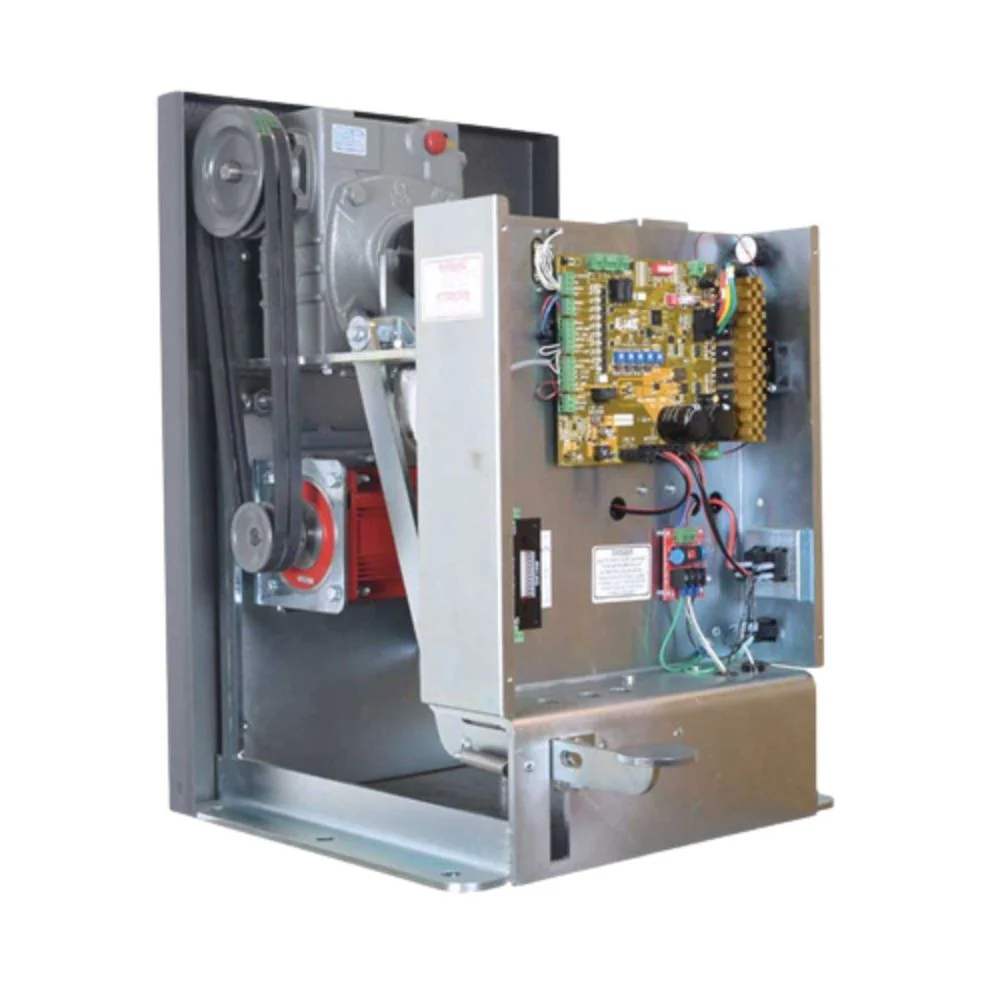

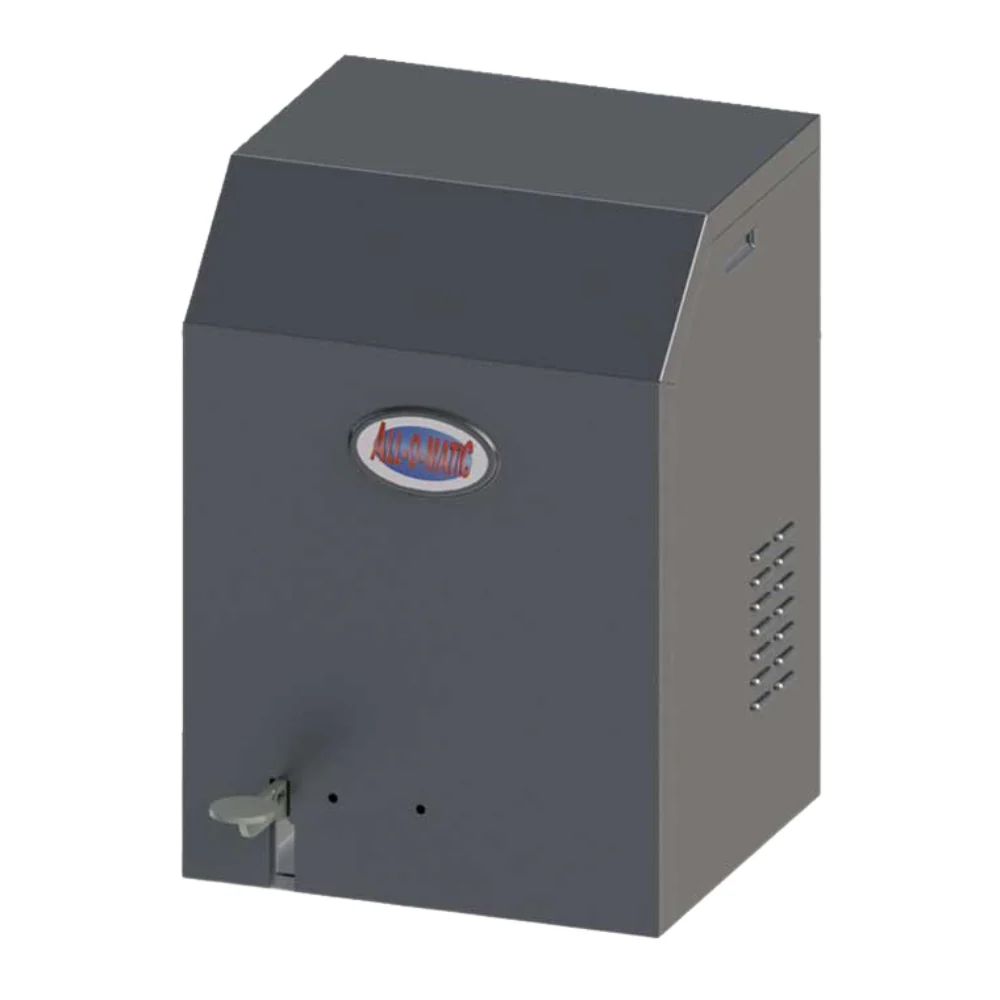

The SL-175 DC slide gate operator is equipped with an all-new super duty high-strength frame, super duty gearbox, beefed up 36VDC brushless DC motor, optional speed of 12” or 24” per second, and a new in-house design BLDC control board- All combined with the industry-leading brushless DC technology (soft start/stop, built-in loop rack, integrated battery backup), solar power ready and foot pedal release. The SL-175DC has been tested with gates weighing up to 8,000 lbs. and 75 feet in length.

Includes

• (2) - 7Ah Batteries
• 30' - #50 Chain
• Foot Pedal Release

Technical Specification

• Max Gate Weight: 8,000 lbs. (12” per second) 3,000 lbs. (24” per second)
• Max Gate Length: 100 feet
• Warranty: 5 years commercial
• Motor: 2HP
• Gate Speed: 12” or 24” per second (specify when ordering)
• Power Options: 115/230VAC Single Phase
• Duty Cycle: Continuous
• Battery Back-Up: Integrated, with (3) 14Ah 12VDC batteries
• Battery Back-Up Capacity: 100 cycles on a 3,000 lb. gate
• Temperature Range: -40 to 160°
• Gearbox Ratio: 30:1 with internal clutch
• Size: 19.5” x 20” x 27.5”
• Shipping Weight: 320 lbs.
• Emergency Release: Mechanical foot pedal release
• Belt Size: 4L-370 (AX35)
• Main Sprocket Size: 40B18X1-3/8
• Chain Size: 50NP (30’ included)
• Limit Shaft Sprocket: 40B18X5/8
• Breaker Requirement: 20 amp dedicated
• Gearbox Pulley: 2AK49X3/4
• Motor Pulley: 2AK30X5/8
